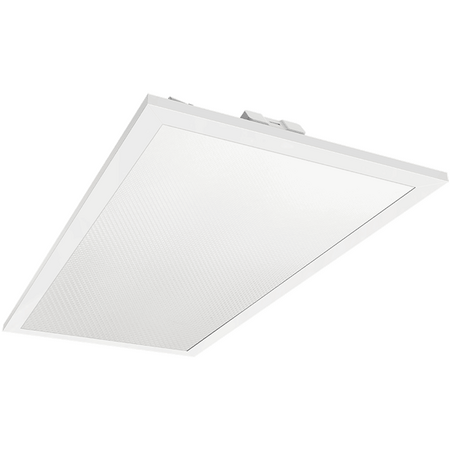

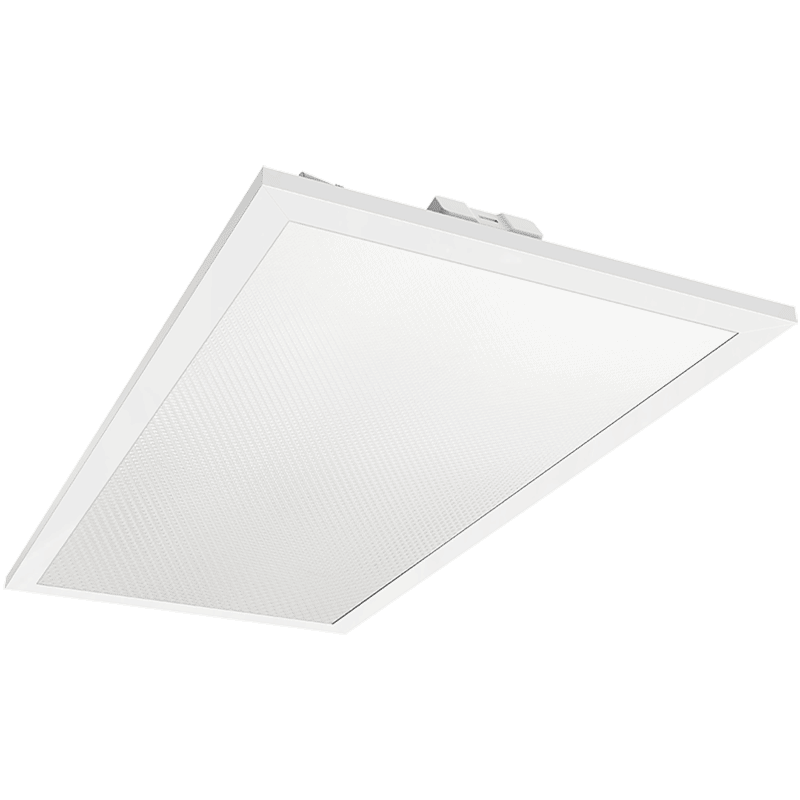

'Matrix G4 Tridonic DALI LED Panel 40W 600x600mm White Haneco'

BRAND: Haneco
SKU: MATX0606-TDALI
$211.20 List price: $281.70
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 LED backlit panel features 40W output, 600x600mm size and Tridonic DALI dimmable Tri-Colour CCT. Ideal for commercial fitouts.'

Alternatively Known As: Haneco MATRIX G4 40W DALI LED Panel, Haneco 600 x 600mm LED Troffer, Tridonic DALI LED Ceiling Panel

Technical Specifications
  • Rated Power: 40 W
  • Dimming Type: Tridonic DALI
  • Colour Temperature: Tri-colour selectable, 4000K / 4500K / 5000K
  • Input Voltage: 220–240 V AC
  • Power Factor: >0.9
  • Insulation Class: Class II
  • Ingress Protection: IP40 front face
  • Colour Rendering Index: CRI >90
  • Glare Rating: UGR <19
  • Light Distribution: Even backlit illumination
  • Body Material: Steel
  • Diffuser Material: PMMA
  • Colour: White
  • Driver: Tridonic DALI driver
  • Dimensions (H x L x W): 33mm x 595mm x 595mm
  • Weight: 1.96 kg
Key Features
  • DALI dimmable for integration with commercial lighting control systems
  • Tri-colour CCT selection from 4000K, 4500K and 5000K
  • Low-glare UGR<19 output for offices, education and healthcare environments
  • High colour rendering with CRI greater than 90
  • Flicker-free driver design
  • Cyanosis-compliant lighting performance for suitable medical applications
  • Backlit LED panel with even illumination
  • Compatible with recessed, surface-mount and suspended installation accessories
Professional Installation Requirements
  • Installation must be performed by a licensed or qualified electrician in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable Australian electrical requirements. DALI control wiring and mains connections must be correctly installed and isolated before wiring.
Applications
  • Commercial offices and fitouts
  • Classrooms and education facilities
  • Boardrooms and meeting rooms
  • Showrooms and retail areas
  • Medical facilities and healthcare environments
  • Storage and general indoor work areas
Standards & Compliance
  • AS/NZS 60598.1:2017
  • AS/NZS 60598.2.2:2016
  • AS/NZS 61347.1:2016
  • AS/NZS 61347.2.13:2018
  • AS CISPR 15:2017
Environmental Benefits
  • LED technology provides lower energy consumption than conventional fluorescent panels
  • High efficacy supports reduced operational energy use in commercial lighting installations
  • Long service life can reduce replacement frequency and associated material waste
  • Steel and PMMA construction components may be recyclable subject to local recycling facilities
Warranty Information

5-year product warranty with direct replacement subject to Haneco warranty terms and conditions.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
