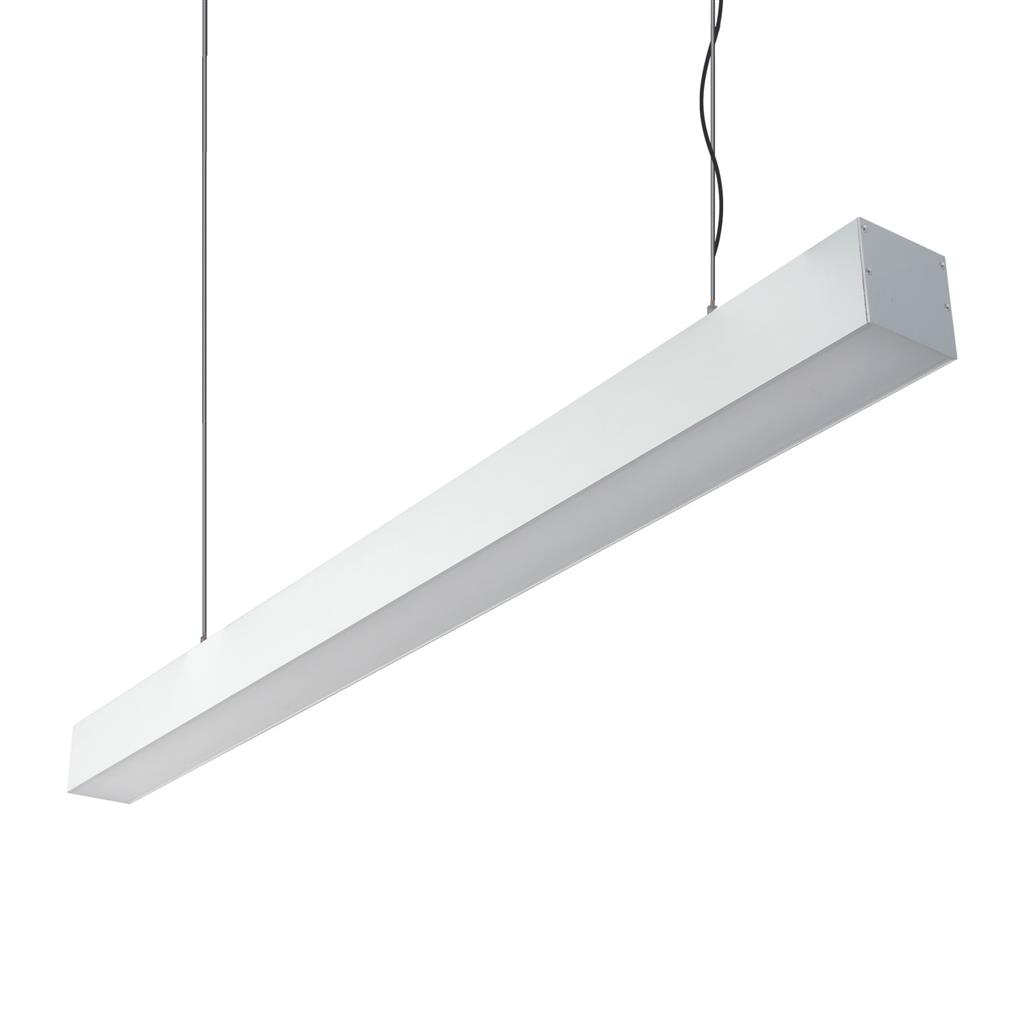

MAX-75 Down Pendant 17.3W | Aluminium Body | DALI Dimming & Emergency Options | 1M by Domus Lighting
MAX-75 down pendant with a 17.3W power output and extruded aluminium body—ideal for commercial and residential lighting. Built for versatility, it features DALI dimming and emergency options, ensuring optimal performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX-75MM Down Pendant 17.3W 1M C/W Opal - Aluminium
Brand: Domus Lighting
SKU: 22919
Alternatively Known As: MAX-75 Down Pendant, MAX-75 Linear Pendant, Aluminium Downlight Pendant, Domus MAX-75 Pendant Light
Technical Specifications
- Power: 17.3W
- Input Voltage: 240V
- Body Material: Extruded Aluminium
- Diffuser Material: Flat PMMA
- LED Source: Osram LED boards
- Length: 1 meter standard, custom lengths up to 5 meters available
- Dimming: DALI and 0-10V options available
- Colour Temperature Variants: 3000K, 4000K, Tunable White
- Emergency lighting options available
- Dimensions (H x L x W): 75mm x 1000mm x 75mm
- Weight: 1.5 kg
Key Features
- Extruded aluminium body with flat PMMA diffuser
- Osram LED boards for high-quality illumination
- Custom powder coated colours available upon request
- Dimming options including DALI available
- Emergency lighting options available
- Custom made continuous lengths up to 5 meters
- Lengths can be joined to form longer runs
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Commercial lighting applications
- Residential lighting applications
- Linear pendant lighting
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
- Energy-efficient LED technology reduces power consumption.
- Long lifespan reduces waste and replacement frequency.
- Custom dimming options help optimize energy use.
Warranty Information
3 years replacement warranty.
Available Now
The MAX-75MM Down Pendant 17.3W 1M C/W Opal - Aluminium by Domus Lighting is available now for immediate purchase. Ideal for commercial and residential linear pendant lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
