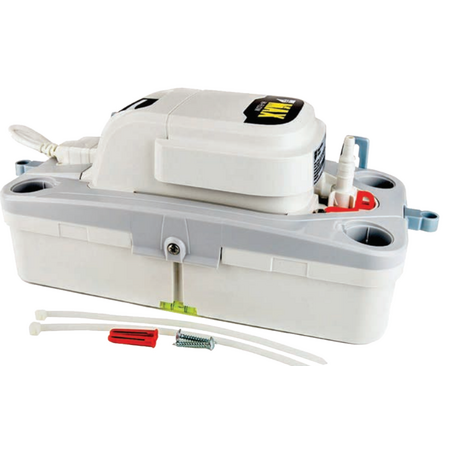

MAX Hi-Flow Condensate Pump 550 L h Flow Rate IP24 Splash Proof Aspen Pumps
The MAX Hi-Flow Condensate Pump is designed for efficient condensate removal in ducted air conditioning units and HVAC systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Maximum flow rate: 550 L/h at 0 head
- Maximum recommended head: 5 meters
- Tank capacity: 1.7 litres
- Noise level: 44 dB(A) at 1 meter
- Power supply: 230 VAC, 0.8A, 50Hz
- Rated non-continuous operation
- Class I appliance
- Maximum water temperature: 40°C
- Inlet sizes: 4 x 21-27mm
- Outlet sizes: 6mm and 10mm
- IP Protection: IP24
- Safety switch: 3A normally closed
- Thermal protection included
- Dimensions (H x L x W): 120mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- IP24 splash proof rating
- Easy access tank for maintenance
- Built-in spirit level for accurate installation
- Plug & play power cable for simple setup
- High flow rate of 550 litres per hour
- Low noise operation at 44 dB(A) at 1 meter
- Thermal protection for safety
- Safety switch 3A normally closed
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct setup and compliance with safety standards.
Applications
- Ducted air conditioning units
- HVAC systems requiring condensate removal
Standards & Compliance
- Complies with AS/NZS 60335.2.40 for safety of pumps
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient condensate removal helps prevent water damage and mold growth, promoting healthier indoor environments.
- Low power consumption reduces energy usage.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Pumps MAX Hi-Flow Condensate Removal Pump is available now for immediate purchase. Ideal for ducted air conditioning systems requiring reliable and quiet condensate removal.
