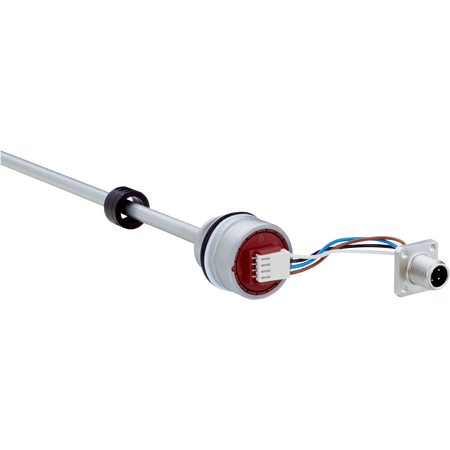

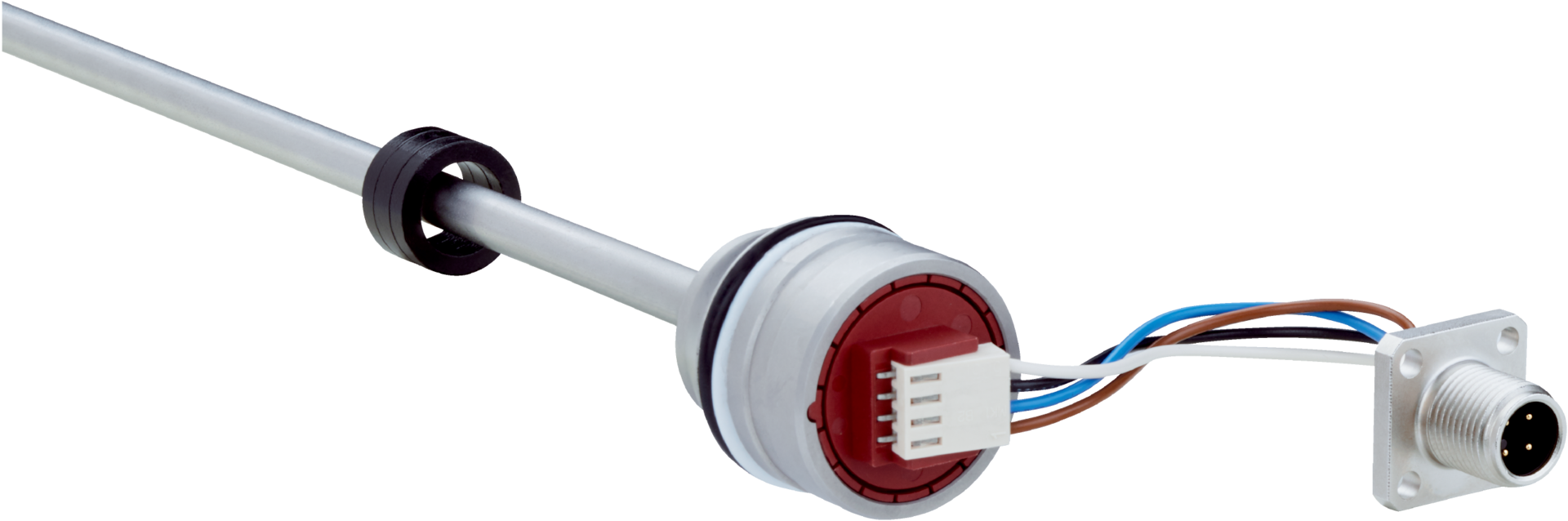

Product Name/Title: MAX30N-72A10AA0500 | Linear encoders
Brand: SICK
SKU: 1110401
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder position sensor, Analog linear transducer
Technical Specifications
- Installation housing: 30 mm for IN cylinder mounting
- Measuring range: 0 mm to 500 mm
- Null zone: 21.5 mm
- Damping zone: 30 mm
- Operating temperature: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 320 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Switch-on current: 2.5 A / 50 µs
- Measuring frequency: 2 ms
- Setpoint tolerance: ≤ ±1 mm
- Hysteresis: ± 0.1 mm
- Repeatability: Typically ± 0.2 mm
- Linearity: Typically ± 0.25 mm (50 to 500 mm range)
- Temperature drift: Typically ≤ ± 0.25 mm after 2 min warm-up
- Communication interface: Analog current output 4 mA to 20 mA
- Connection: Male M12 type S connector, 4-pin
- Power consumption: ≤ 1.25 W
- Current consumption: ≤ 50 mA
- Load resistance: 100 Ω to 500 Ω
- Overvoltage protection: ≤ 36 V at all poles during power-up
- Reverse polarity protection: ≤ 36 V
- Insulation resistance: ≥ 10 MΩ
- Dielectric strength: 500 V DC to housing
- Short-circuit protection: VS to GND on housing
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- O-ring: NBR 70
- Support ring: PTFE
- M12 flange: Nickel-plated brass with O-ring (NBR)
- Wire length: 60 mm
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 30mm x 60mm x 30mm
- Weight: 0.3 kg
Key Features
- 30 mm installation housing for IN cylinder mounting
- Measuring range from 0 mm to 500 mm
- High accuracy with setpoint tolerance ≤ ±1 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Analog current output 4 mA to 20 mA
- Operating temperature range from -30 °C to +95 °C
- Overvoltage, reverse polarity, and short-circuit protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor mounting and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 1.25 W) supports energy-efficient operation
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX30N-72A10AA0500 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
