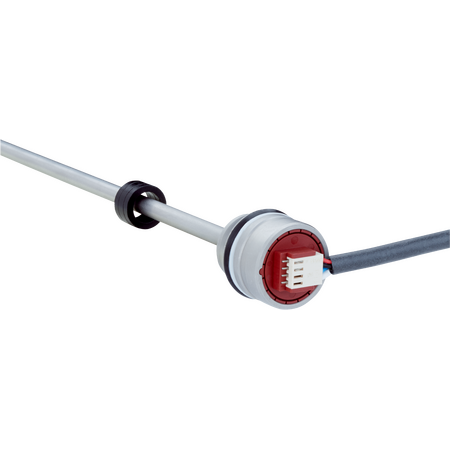

MAX30N-72A10K40410 | Linear encoders
The SICK MAX30N-72A10K40410 linear encoder offers precise position measurement with robust stainless steel housing, suitable for high-pressure industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX30N-72A10K40410 | Linear encoders
Brand: SICK
SKU: 1134657
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder position sensor, Analog linear transducer
Technical Specifications
- Installation housing diameter: 30 mm
- Measuring range: 0 mm to 410 mm
- Null zone: 21.5 mm
- Damping zone: 30 mm
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog signal
- Operating pressure: 320 bar
- Operating temperature: -30 °C to +95 °C
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Protection rating: IP67 (EN 60529)
- Cable length: 1000 mm, 3-wire connection
- Dimensions (H x L x W): 31mm x 410mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing for IN cylinder mounting
- Measuring range up to 410 mm
- High accuracy with setpoint tolerance ≤ ±1 mm
- Operating pressure up to 320 bar
- Operating temperature range from -30 °C to +95 °C
- IP67 rated stainless steel housing for harsh environments
- Analog current output 4 mA to 20 mA
- Robust electrical protections including overvoltage and reverse polarity protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and hydraulic systems to ensure proper mounting and connection.
Applications
- Industrial automation and control systems
- Position measurement in hydraulic cylinders
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption (≤ 1.25 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MAX30N-72A10K40410 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
