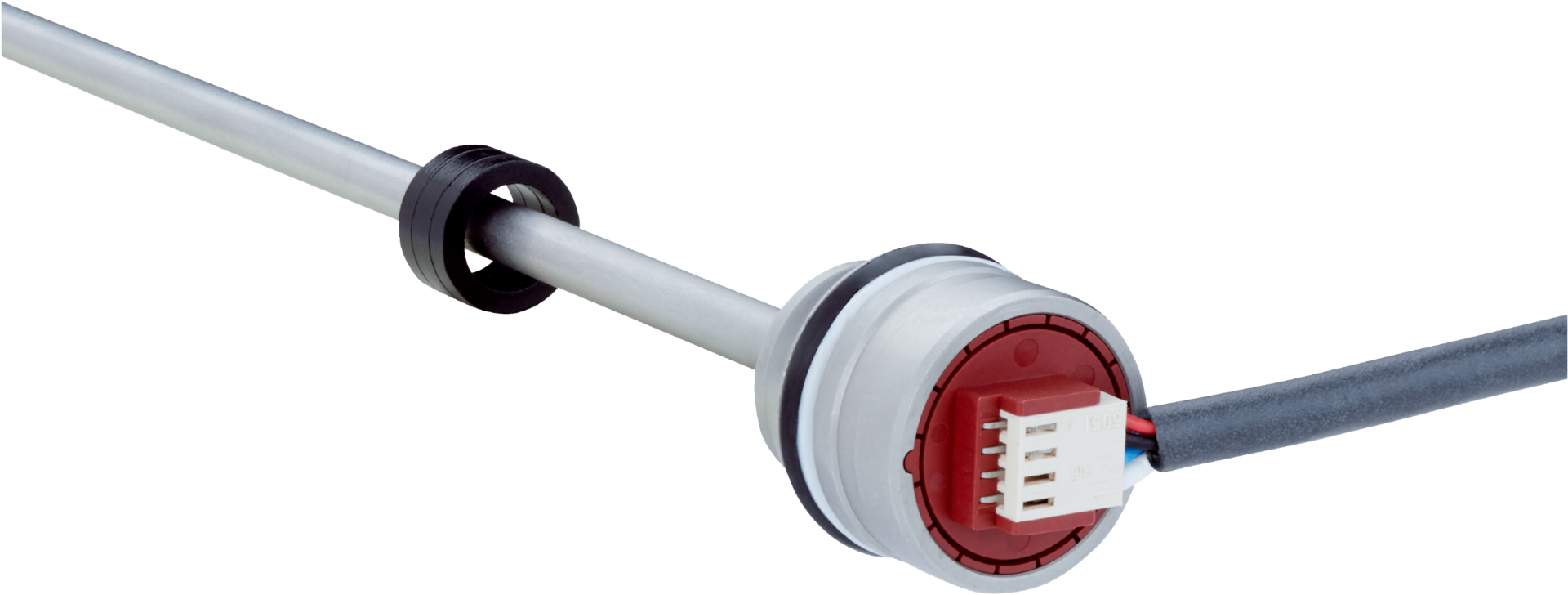

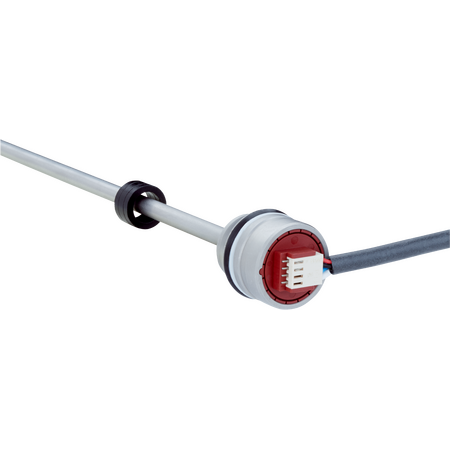

Product Name/Title: MAX30N-72A10K80810 | Linear encoders
Brand: SICK
SKU: 1134929
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, position measuring system
Technical Specifications
- Installation housing diameter: 30 mm
- Measuring range: 0 mm to 810 mm
- Null zone: 21.5 mm
- Damping zone: 30 mm
- Operating temperature: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 320 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Linearity: ±0.25 mm (50 to 500 mm range), ±0.04% F.S. (500 to 1500 mm range)
- Connection: 3-wire cable, 5,000 mm length
- Output signal: Analog current 4 mA to 20 mA
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Protection rating: IP67 (EN 60529)
- Overvoltage protection: ≤36 V at all poles during power-up
- Reverse polarity protection: Yes
- Insulation resistance: ≥10 MΩ
- Dielectric strength: 500 V DC
- Dimensions (H x L x W): 30mm x 810mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing for IN cylinder mounting
- Measuring range up to 810 mm
- High accuracy with setpoint tolerance ≤ ±1 mm
- Operating pressure up to 320 bar
- Operating temperature range from -30 °C to +95 °C
- IP67 rated housing for protection against dust and water
- Analog current output 4 mA to 20 mA
- Stainless steel housing and pressure pipe for durability
- Overvoltage and reverse polarity protection
- Long cable length of 5,000 mm for flexible installation
