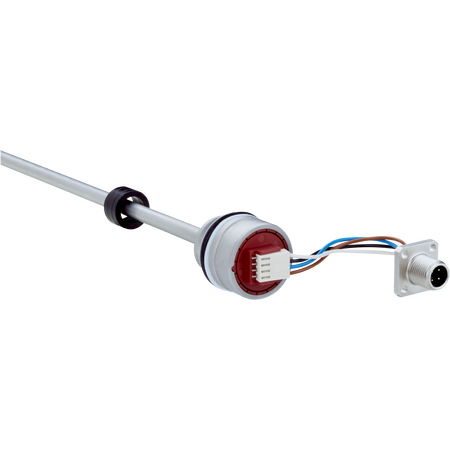

MAX30N-72C49SA0055 | Linear encoders
The SICK MAX30N-72C49SA0055 linear encoder offers precise position and speed measurement with a robust stainless steel housing and CANopen interface, ideal for industrial automation and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX30N-72C49SA0055 | Linear encoders
Brand: SICK
SKU: 1133123
Alternatively Known As: Linear position sensor, Linear displacement encoder, CANopen linear encoder, Hydraulic cylinder position sensor
Technical Specifications
- Installation housing: 30 mm for IN cylinder mounting
- Measuring range: 0 mm to 55 mm
- Speed measurement: 0 to 1,000 mm/s
- Null zone: 21.5 mm
- Damping zone: 30 mm
- Operating temperature: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 320 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms
- Communication interface: CANopen CiA DS-301, DS-406
- Bus termination: 120 Ω external
- Connection: Male M12 type L, 5-pin
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), NBR O-ring
- Protection rating: IP67 housing, IP69K M12 connector
- Vibration resistance: Up to 15 g sine, 24 h per axis
- Overvoltage protection: ≤ 36 V during power-up (60 s)
- Reverse polarity protection compliant with ISO 16750-2
- Dimensions (H x L x W): 30mm x 60mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing for IN cylinder mounting
- Measuring range up to 55 mm with positioning and speed measurement
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- CANopen communication interface with configurable transmission rate
- Operating temperature range from -30 °C to +95 °C
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection
- Short switch-on time < 250 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and industrial sensor mounting to ensure correct alignment and secure connection.
Applications
- Industrial automation for precise position and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery requiring robust linear measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX30N-72C49SA0055 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
