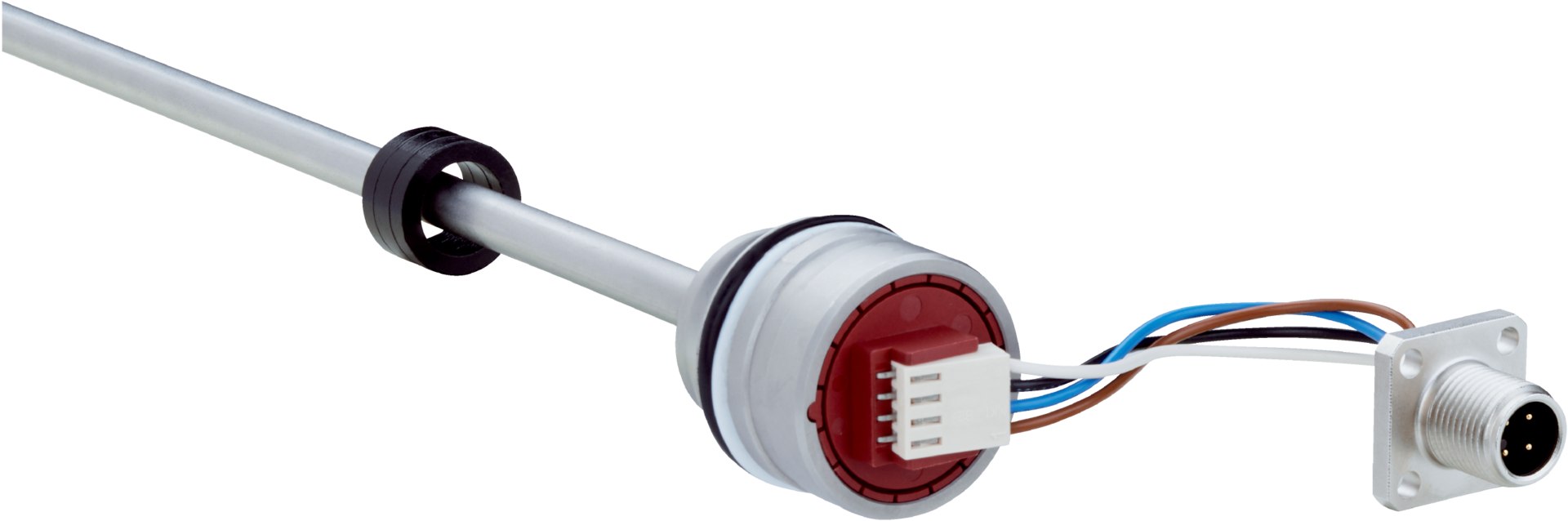

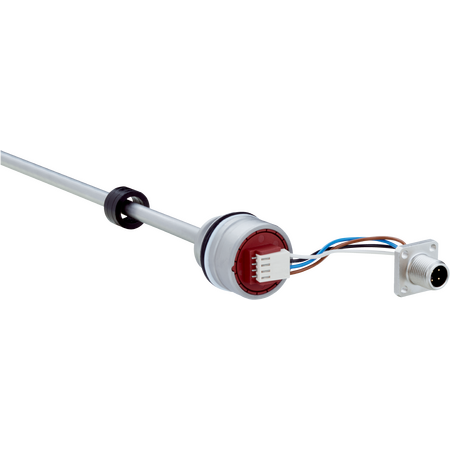

MAX30N-72C7FCA0500 Linear encoders

BRAND: SICK
SKU: 1110404
$1,443.70 List price: $1,814.60
+ −
30 Days Return Electricians Unlock Trade Access
The SICK MAX30N-72C7FCA0500 linear encoder offers precise position and speed measurement with robust stainless steel construction, CANopen interface

Product Name/Title: MAX30N-72C7FCA0500 | Linear encoders

Brand: SICK

SKU: 1110404

Alternatively Known As: Linear position sensor, linear displacement encoder, CANopen linear encoder, cylinder linear encoder

Technical Specifications
  • Measuring range: 0 mm to 500 mm
  • Speed range: 0 to 1,000 mm/s
  • Setpoint tolerance: ≤ ±1 mm
  • Repeatability: ±0.2 mm
  • Linearity: ±0.25 mm (50 to 500 mm range)
  • Operating temperature: -30 °C to +95 °C
  • Supply voltage: 24 V DC (8 to 32 V DC)
  • Power consumption: ≤ 0.75 W
  • Current consumption: ≤ 30 mA
  • Connection: Male M12 type S, 5-pin
  • Communication: CANopen CiA DS-301 and DS-406
  • Protection rating: IP67 housing, IP69K connector
  • Overvoltage protection: ≤ 36 V during power-up
  • Insulation resistance: ≥ 10 MΩ
  • Dielectric strength: 500 V DC to housing
  • Vibration resistance: up to 15 g sine, 24 h per axis
  • Dimensions (H x L x W): 30mm x 60mm x 30mm
  • Weight: 0.5 kg
Key Features
  • 30 mm installation housing for IN cylinder mounting
  • Measuring range: 0 mm to 500 mm
  • Speed measurement up to 1,000 mm/s
  • High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
  • Operating temperature range from -30 °C to +95 °C
  • CANopen communication interface with configurable transmission rate
  • Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
  • IP67 rated housing and IP69K rated M12 connector for harsh environments
  • Overvoltage and reverse polarity protection
  • Short switch-on time < 250 ms
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
  • Industrial automation for precise position and speed measurement
  • Cylinder mounting requiring 30 mm installation housing
  • High-pressure environments up to 320 bar
  • Applications requiring robust IP67 and IP69K rated sensors
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel construction extends product life reducing waste
  • Low power consumption (≤ 0.75 W) supports energy-efficient operation
  • High reliability reduces need for frequent replacements
Warranty Information

Warranty details available upon request from manufacturer or authorized distributor.

Available Now

The SICK MAX30N-72C7FCA0500 linear encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
