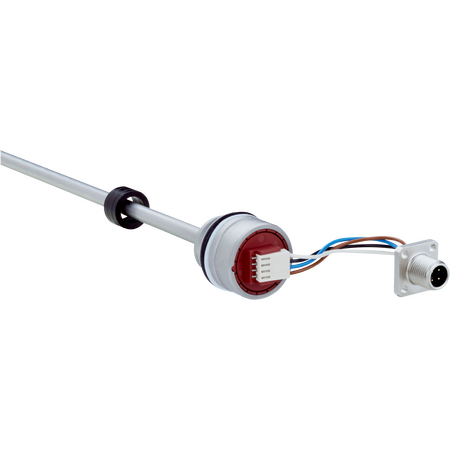

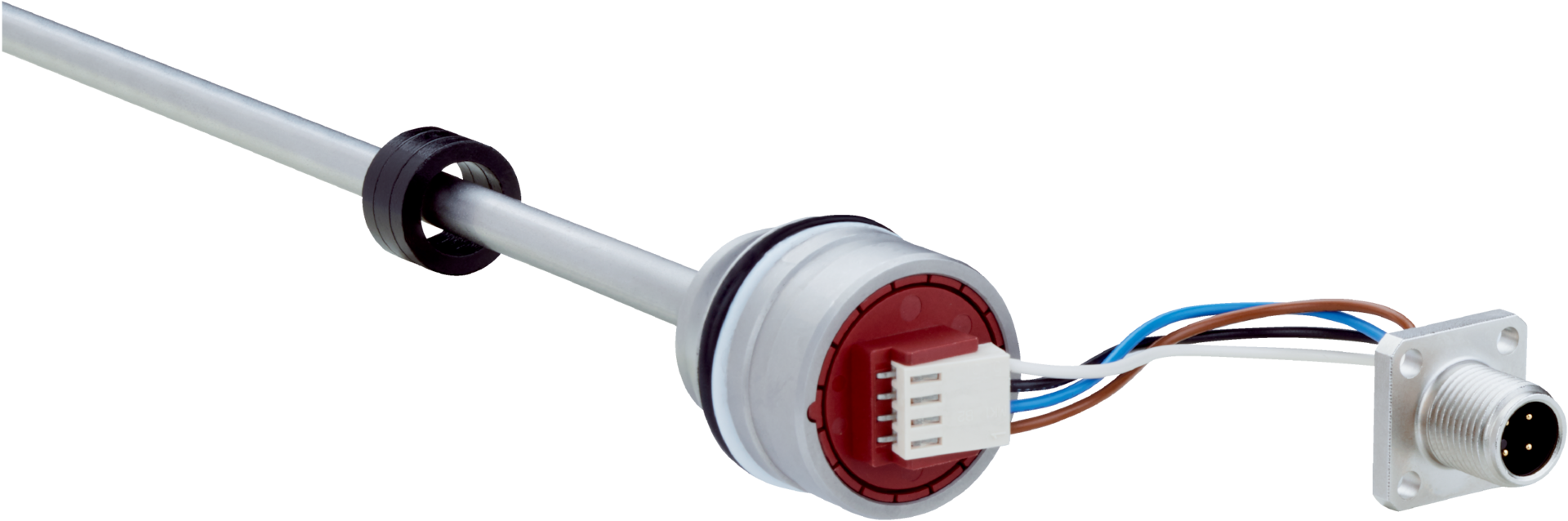

Product Name/Title: MAX30N-72C7FCP0090 | Linear encoders
Brand: SICK
SKU: 1128781
Alternatively Known As: Linear position sensor, Linear displacement encoder, CANopen linear encoder, Cylinder linear encoder
Technical Specifications
- Installation housing: 30 mm for IN cylinder mounting
- Measuring range: 0 mm to 90 mm
- Speed measurement: 0 to 1,000 mm/s
- Null zone: 21.5 mm
- Damping zone: 30 mm
- Operating pressure: 320 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms
- Communication interface: CANopen with CiA DS-301 and DS-406 device profile
- Electrical connection: Male M12 type S connector, 5-pin
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Overvoltage protection: ≤ 36 V at all poles during power-up
- Reverse polarity protection compliant with ISO 16750-2
- Insulation resistance: ≥ 10 MΩ (ISO 16750-2)
- Dielectric strength: 500 V DC to housing
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- O-ring: NBR 70
- Support ring: PTFE
- Wire length: 240 mm
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 30mm x 90mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing suitable for IN cylinder mounting
- Measuring range of 0 mm to 90 mm with positioning and speed measurement
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability typically ±0.2 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- CANopen communication interface with configurable transmission rate
- Operating temperature range from -30 °C to +95 °C for fluid temperature
- IP67 rated housing and IP69K rated M12 male connector for harsh environments
- Overvoltage and reverse polarity protection included
- Fast switch-on time of less than 250 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor mounting and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Cylinder mounting applications requiring robust linear encoders
- Use in environments with high pressure and temperature variations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption of ≤ 0.75 W supports energy-efficient operation
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX30N-72C7FCP0090 linear encoder is available for immediate purchase, ideal for industrial automation and cylinder mounting applications requiring precise position and speed measurement.
