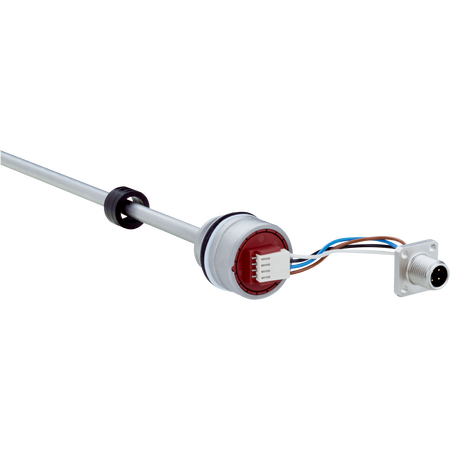

MAX30N-72E32FF0426 | Linear encoders
The SICK MAX30N-72E32FF0426 linear encoder offers precise position and speed measurement with robust stainless steel construction and CANopen interface, ideal for industrial and mobile machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX30N-72E32FF0426 | Linear encoders
Brand: SICK
SKU: 1145457
Alternatively Known As: Linear position sensor, linear displacement encoder, hydraulic cylinder encoder, CANopen linear transducer
Technical Specifications
- Installation housing: 30 mm for IN cylinder mounting
- Measuring range: 0 mm to 426 mm
- Speed measurement: 0 to 1,000 mm/s
- Null zone: 21.5 mm
- Damping zone: 30 mm
- Operating temperature: -30 °C to +95 °C
- Air humidity: max 90%, no condensation
- Operating pressure: 320 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Linearity: ±0.25 mm (50 to 500 mm range)
- Communication: CANopen CiA DS-301 and DS-406
- Connection: Male M12 type L, 5-pin
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Protection: Overvoltage, reverse polarity, short-circuit
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 30mm x 110mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing for IN cylinder mounting
- Measuring range up to 426 mm with positioning and speed measurement
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
- Operating temperature range from -30 °C to +95 °C
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- CANopen communication interface with configurable transmission rate
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection
- Fast switch-on time < 250 ms and low power consumption ≤ 0.75 W
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery requiring robust linear measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX30N-72E32FF0426 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
