MAX30N-72F7FCN0810 | Linear encoders
The SICK MAX30N-72F7FCN0810 linear encoder offers precise position and speed measurement with robust stainless steel construction and CANopen interface, ideal for industrial automation and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

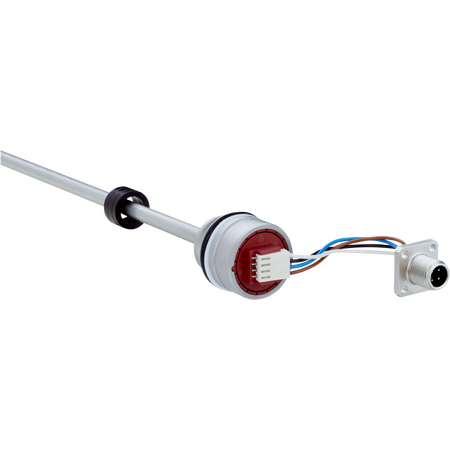

Product Name/Title: MAX30N-72F7FCN0810 | Linear encoders
Brand: SICK
SKU: 1133961
Alternatively Known As: Linear position sensor, Linear displacement encoder, CANopen linear encoder, Hydraulic cylinder position sensor
Technical Specifications
- Installation housing: 30 mm, IN cylinder mounting
- Measuring range: 0 mm to 810 mm
- Speed measurement: 0 to 1,000 mm/s
- Null zone: 21.5 mm, Damping zone: 30 mm
- Operating fluid temperature: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 320 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms
- Communication: CANopen CiA DS-301, DS-406
- Bus protocol baud rate: 500 kbit/s
- Electrical protection: Overvoltage, reverse polarity, short-circuit
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Connector: Male M12 type S, 5-pin
- Enclosure rating: IP67 housing, IP69K connector
- Dimensions (H x L x W): 30mm x 220mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing for IN cylinder mounting
- Measuring range up to 810 mm with position and speed measurement
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- CANopen communication interface with configurable transmission rate
- Operating temperature range from -30 °C to +95 °C for fluid temperature
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection
- Vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise positioning and speed measurement
- Hydraulic cylinder position feedback
- Machine tool and manufacturing equipment monitoring
- Agricultural and forestry machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX30N-72F7FCN0810 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
