MAX30N-72V10AB0300 | Linear encoders

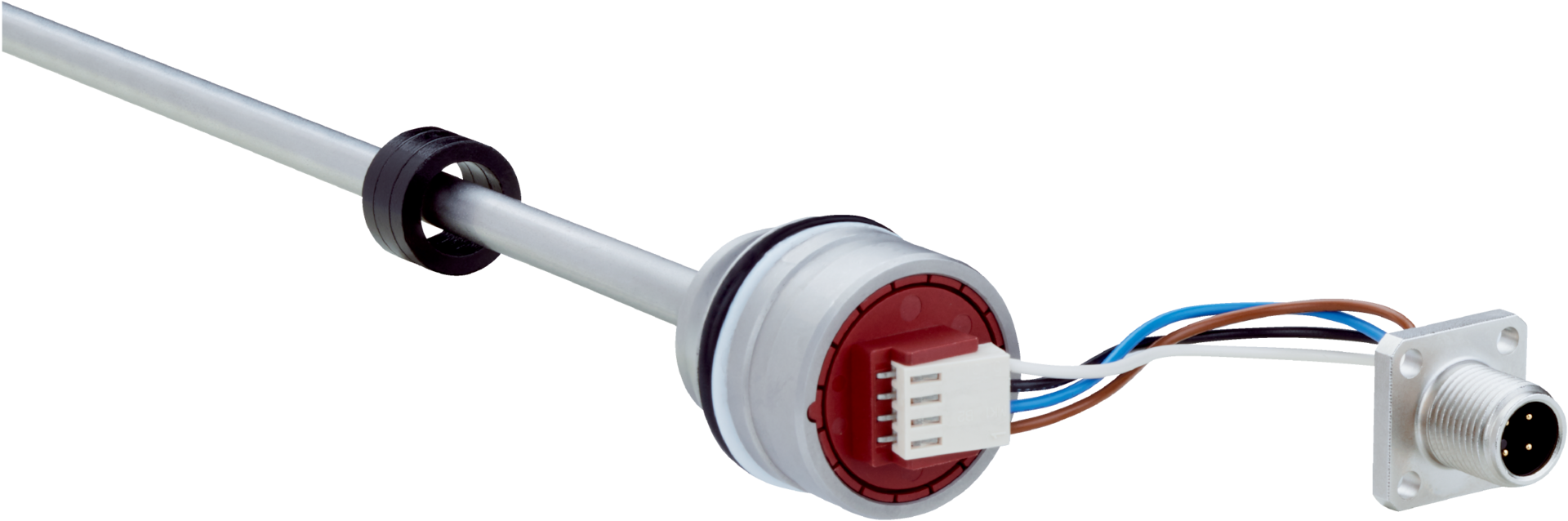

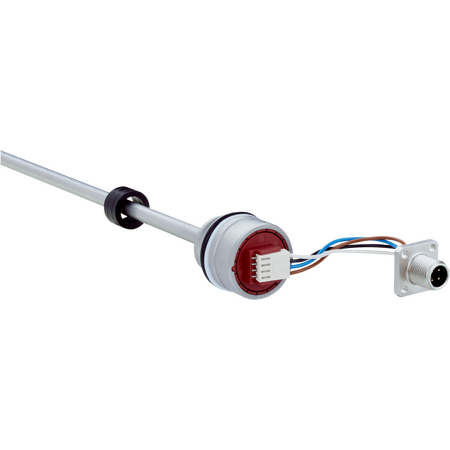

The SICK MAX30N-72V10AB0300 linear encoder features a robust 30 mm stainless steel housing designed for precise position measurement in industrial applications, with high pressure and temperature resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX30N-72V10AB0300 | Linear encoders
Brand: SICK
SKU: 1122238
Alternatively Known As: Linear position sensor, linear displacement sensor, hydraulic cylinder encoder, analog linear encoder
Technical Specifications
- Measuring range: 0 mm to 300 mm
- Setpoint tolerance: ≤ ±1 mm
- Hysteresis: ±0.1 mm
- Repeatability: Typically ±0.2 mm
- Linearity: Typically ±0.25 mm (50 to 500 mm range)
- Temperature drift: Typically ≤ ±0.25 mm after 2 min warm-up
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current consumption: ≤ 30 mA
- Power consumption: ≤ 0.75 W
- Output signal: Analog voltage 0.5 V DC to 4.5 V DC
- Operating pressure: 320 bar
- Operating temperature: -30°C to +95°C (fluid), -40°C to +105°C (electronics)
- Protection rating: IP67 housing, IP69K M12 connector
- Connector: Male M12 type S, 4-pin
- Dimensions (H x L x W): 30mm x 70mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing suitable for IN cylinder mounting
- Measuring range up to 300 mm with high accuracy
- Stainless steel housing and pressure pipe for durability
- Male M12 type S connector with 4-pin for reliable connection
- Operating pressure up to 320 bar and fluid temperature range from -30°C to +95°C
- High vibration resistance and IP67/IP69K rated for harsh environments
- Analog voltage output from 0.5 V DC to 4.5 V DC
- Overvoltage and reverse polarity protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool feedback systems
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX30N-72V10AB0300 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
