MAX30N-72V20AA0500 | Linear encoders

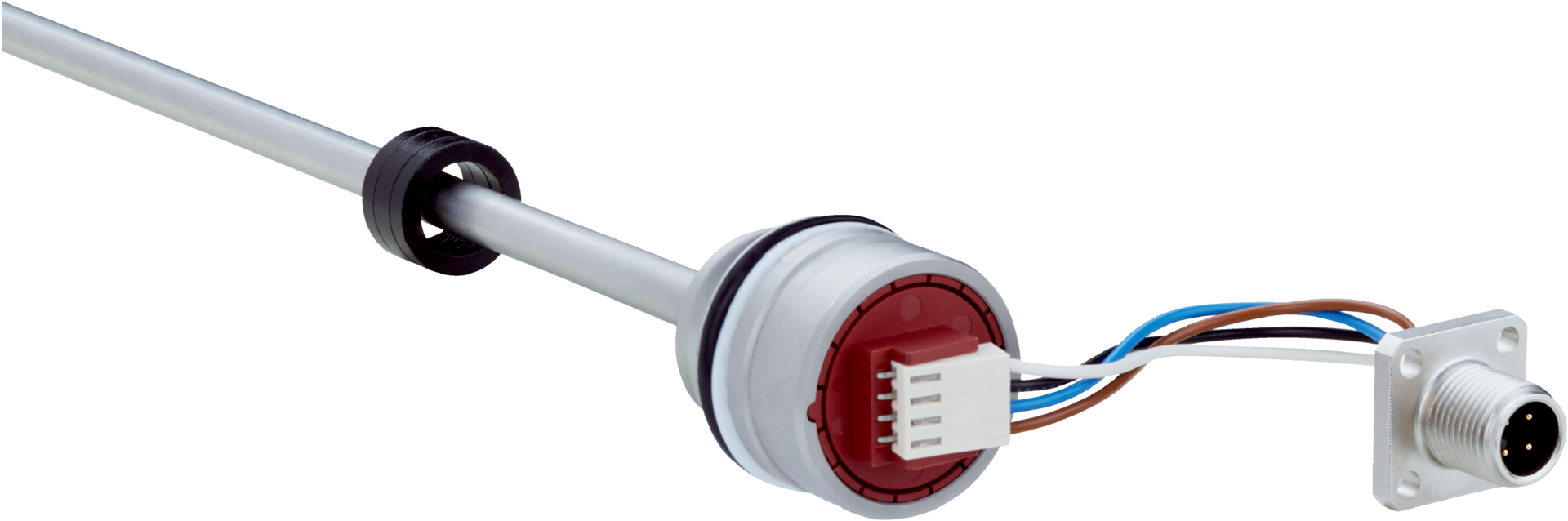

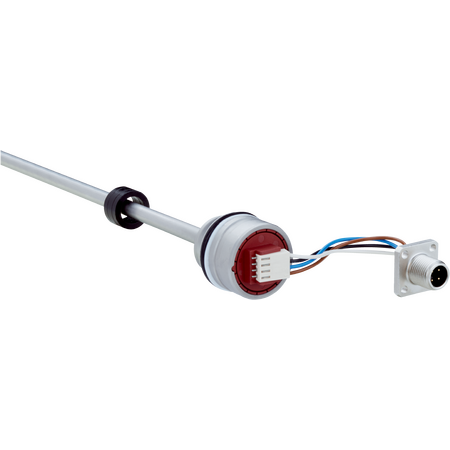

The SICK MAX30N-72V20AA0500 linear encoder features a 30 mm installation housing with high accuracy and robust stainless steel construction, ideal for industrial position measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX30N-72V20AA0500 | Linear encoders
Brand: SICK
SKU: 1110550
Alternatively Known As: Linear position sensor, linear displacement encoder, hydraulic cylinder encoder, analog linear transducer
Technical Specifications
- Measuring range: 0 mm to 500 mm
- Null zone: 21.5 mm
- Damping zone: 30 mm
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Switch-on current: 5.0 A / 50 µs
- Measuring frequency (internal): 2 ms
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability typically ±0.2 mm
- Linearity: Typically ±0.25 mm (50 to 500 mm range)
- Temperature drift: Typically ≤ ±0.25 mm after 2 min warming up
- Connection type: Male connector, M12 type S (20x20 mm), 4-pin
- Output signal: Analog voltage 0.25 V DC to 4.75 V DC
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Load resistance: RL ≥ 10 kΩ
- Protection: Overvoltage, reverse polarity, short-circuit
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- O-ring: NBR 70
- Support ring: PTFE
- M12 flange: Nickel-plated brass with O-ring (NBR)
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 30mm x 60mm x 30mm
- Weight: 0.3 kg
Key Features
- 30 mm installation housing suitable for IN cylinder mounting
- Measuring range from 0 mm to 500 mm
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability typically ±0.2 mm
- Operating temperature range from -30 °C to +95 °C
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 male connector for harsh environments
- Analog voltage output from 0.25 V DC to 4.75 V DC
- Overvoltage, reverse polarity, and short-circuit protection
- Fast switch-on time less than 250 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery and agricultural equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MAX30N-72V20AA0500 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
