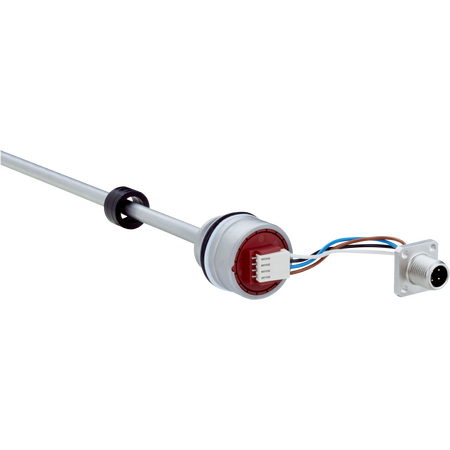

MAX30N-72V20BC0500 | Linear encoders
The SICK MAX30N-72V20BC0500 linear encoder offers precise position measurement with robust stainless steel construction, suitable for industrial cylinder mounting applications with high pressure and harsh environmental resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX30N-72V20BC0500 | Linear encoders
Brand: SICK
SKU: 1110396
Alternatively Known As: Linear position sensor, linear displacement encoder, cylinder position sensor, analog linear encoder
Technical Specifications
- Measuring range: 0 mm to 500 mm
- Setpoint tolerance: ≤ ±1 mm
- Hysteresis: ±0.1 mm
- Repeatability: Typically ±0.2 mm
- Linearity: Typically ±0.25 mm (50 to 500 mm range)
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Operating pressure: 320 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Output signal: Analog voltage 0.25 V DC to 4.75 V DC
- Connection: Male M12 type S connector, 4-pin
- Protection rating: IP67 housing, IP69K connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), PTFE support ring
- Dimensions (H x L x W): 30mm x 80mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing for IN cylinder mounting
- Measuring range from 0 mm to 500 mm
- High accuracy with setpoint tolerance ≤ ±1 mm
- Operating pressure up to 320 bar
- Stainless steel housing and pressure pipe for durability
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Analog voltage output from 0.25 V DC to 4.75 V DC
- Fast switch-on time less than 250 ms
- Overvoltage and reverse polarity protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Cylinder mounting in pneumatic and hydraulic systems
- Machine tool positioning and control
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption of ≤ 0.75 W supports energy efficiency
- High reliability reduces downtime and resource use
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK MAX30N-72V20BC0500 linear encoder is available for immediate purchase, ideal for industrial automation and precise position sensing applications.
