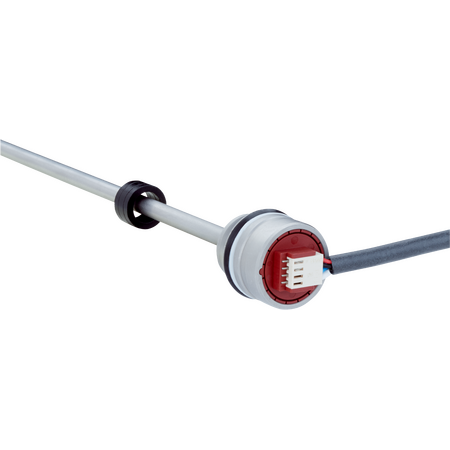

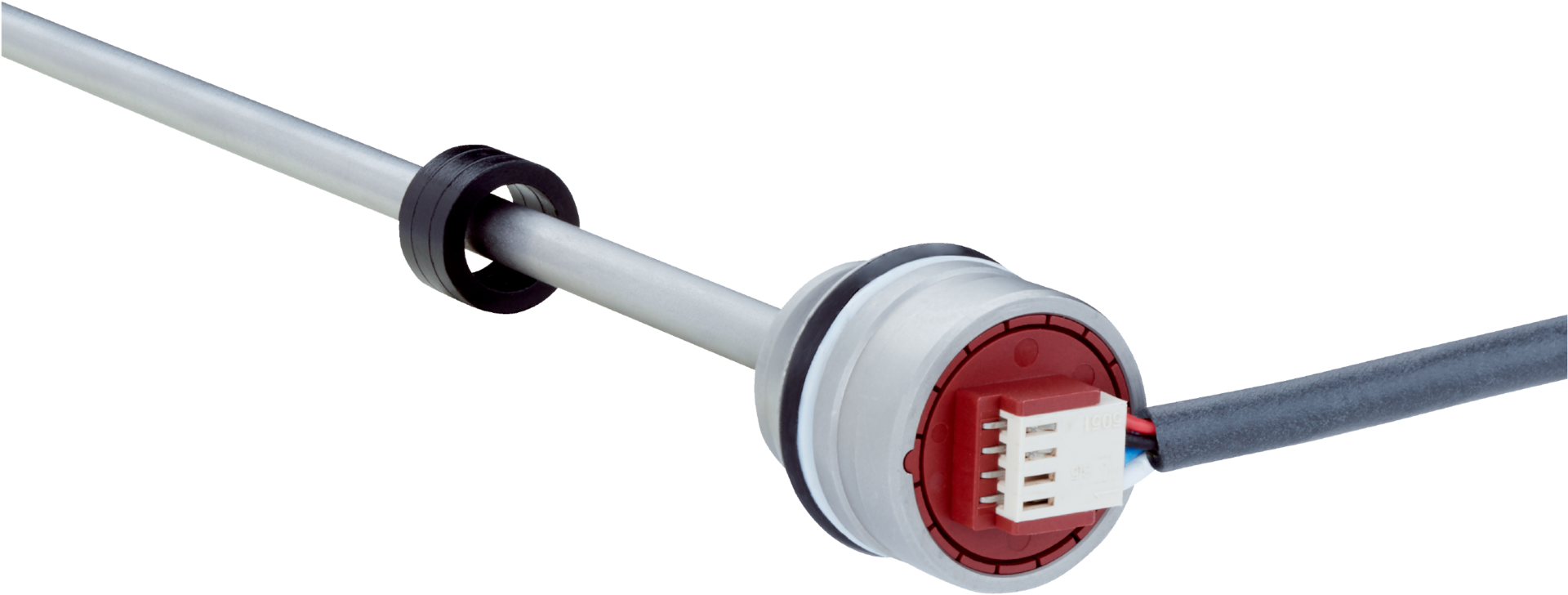

Product Name/Title: MAX30N-72V20K10500 | Linear encoders
Brand: SICK
SKU: 1110393
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder position sensor
Technical Specifications
- Installation housing diameter: 30 mm
- Measuring range: 0 mm to 500 mm
- Null zone: 21.5 mm
- Damping zone: 30 mm
- Operating temperature range: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 320 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Switch-on current: 5.0 A / 50 µs
- Measuring frequency: 2 ms
- Setpoint tolerance: ≤ ±1 mm
- Hysteresis: ±0.1 mm
- Repeatability: typically ±0.2 mm
- Linearity: typically ±0.25 mm (50 to 500 mm range)
- Temperature drift during warm-up: ≤ ±0.25 mm (2 min)
- Temperature drift in operation: typically ±0.25 mm
- Communication interface: Analog voltage output 0.25 V DC to 4.75 V DC
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Load resistance: RL ≥ 10 kΩ
- Overvoltage protection: ≤ 36 V at all poles during power-up (60 s)
- Reverse polarity protection: ≤ 36 V (ISO 16750-2)
- Insulation resistance: Riso ≥ 10 MΩ (60 s)
- Dielectric strength: 500 V DC to housing (60 s)
- Short-circuit protection: VS – GND on housing
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- O-ring material: NBR 70
- Support ring material: PTFE
- Sheath material: PUR
- Cable length: 300 mm
- Enclosure rating: IP67 (EN 60529)
- Vibration resistance: up to 15 g sine, 24 h / axis
- Storage temperature: -20 °C to +65 °C
- Operating temperature (electronics): -40 °C to +105 °C
- Dimensions (H x L x W): 30mm x 100mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing for IN cylinder mounting
- Measuring range up to 500 mm
- High accuracy with setpoint tolerance ≤ ±1 mm
- Operating pressure up to 320 bar
- Robust stainless steel housing (AISI 303)
- IP67 rated for protection against dust and water
- Analog voltage output from 0.25 V DC to 4.75 V DC
- Overvoltage and reverse polarity protection
- Short switch-on time less than 250 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and control systems
- Position measurement in hydraulic cylinders
- Precision measurement in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Low power consumption (≤ 0.75 W) supports energy efficiency
- High reliability reduces waste from device failures
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MAX30N-72V20K10500 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
