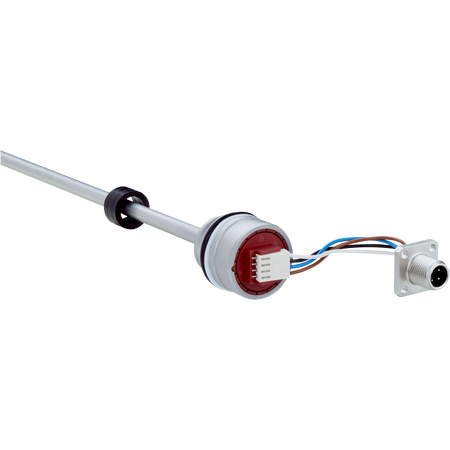

Product Name/Title: MAX30N-92V10HC0105 | Linear encoders
Brand: SICK
SKU: 1142304
Alternatively Known As: Linear position sensor, linear displacement encoder, cylinder linear encoder, industrial linear sensor
Technical Specifications
- Measuring range: 0 mm to 105 mm
- Null zone: 21.5 mm
- Damping zone: 63 mm
- Operating fluid temperature: -30 °C to +95 °C
- Operating pressure: 320 bar (max overload 380 bar)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Output voltage: 0.5 V DC to 4.5 V DC (analog voltage output)
- Measuring frequency: 2 ms internal
- Connection: Male M12 type L connector, 4-pin, radial
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Protection rating: IP67 housing, IP69K connector
- Accuracy: Setpoint tolerance ≤ ±1 mm, hysteresis ±0.1 mm, repeatability ±0.2 mm
- Overvoltage protection: ≤ 36 V at all poles during power-up
- Reverse polarity protection compliant with ISO 16750-2
- Insulation resistance: ≥ 10 MΩ (60 s)
- Dielectric strength: 500 V DC (60 s) to housing
- Dimensions (H x L x W): 30mm x 105mm x 30mm
- Weight: 0.3 kg
Key Features
- 30 mm installation housing suitable for IN cylinder mounting
- Measuring range of 0 mm to 105 mm with null zone of 21.5 mm and damping zone of 63 mm
- Operating fluid temperature range from -30 °C to +95 °C
- High operating pressure up to 320 bar with overload pressure up to 380 bar
- Supply voltage 24 V DC (8 to 32 V DC) with low power consumption ≤ 0.75 W
- Male M12 type L connector with 4 pins and radial connection direction
- Stainless steel housing (1.4305 AISI 303) and pressure pipe (1.4404 AISI 316L) for durability
- IP67 rated housing and IP69K rated M12 connector for protection against dust and water
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability typically ±0.2 mm
- Overvoltage, reverse polarity, and short-circuit protection included
