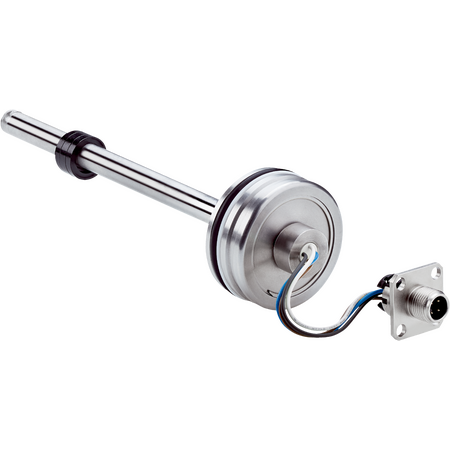

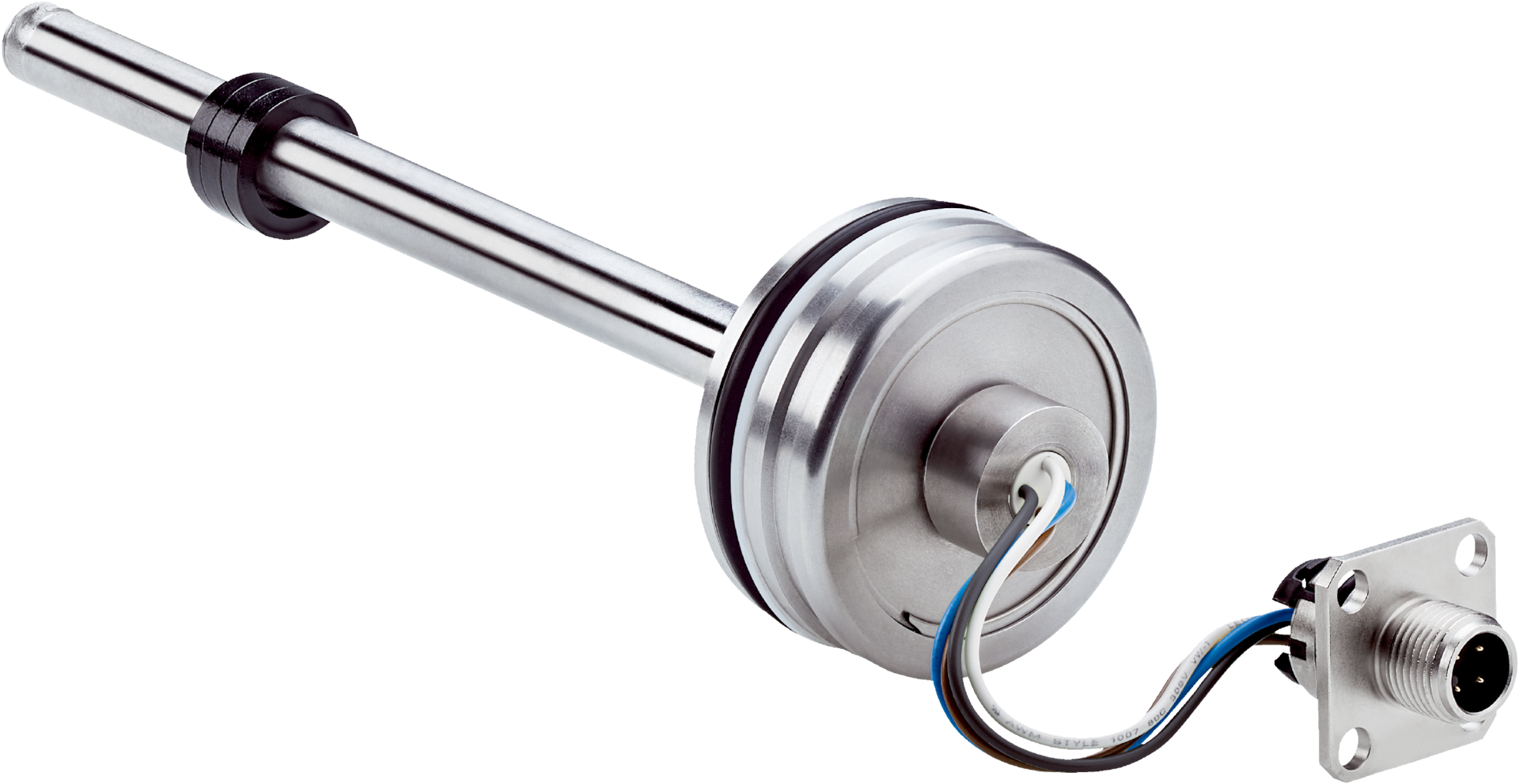

MAX48A-12A10EH0200 | Linear encoders
The SICK MAX48A-12A10EH0200 linear encoder offers precise position measurement with a 200 mm range, robust stainless steel construction, and high environmental resistance for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-12A10EH0200 | Linear encoders
Brand: SICK
SKU: 1115066
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, industrial linear position sensor
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 200 mm
- Null zone: 30 mm
- Damping zone: 30 mm
- Operating pressure: 400 bar (max 480 bar overload)
- Fluid temperature range: -30 °C to +95 °C
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Accuracy: ±0.1 mm hysteresis, ±0.2 mm repeatability
- Linearity: ±0.25 mm (50 to 500 mm range)
- Temperature drift: ≤ ±0.25 mm after 2 min warm-up
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Enclosure rating: IP67 housing, IP69K M12 connector
- Connector: Male M12 type L, 4-pin
- Dimensions (H x L x W): 48mm x 140mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range of 0 mm to 200 mm with 30 mm null and damping zones
- High accuracy with ±0.1 mm hysteresis and ±0.2 mm repeatability
- Operating pressure up to 400 bar with overload pressure of 480 bar
- Operating temperature range from -30 °C to +95 °C
- Analog current output 4 mA to 20 mA
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage, reverse polarity, and short-circuit protection
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to industrial standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High accuracy reduces energy waste in industrial processes
- Robust design minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48A-12A10EH0200 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
