MAX48A-12A10GC0200 | Linear encoders

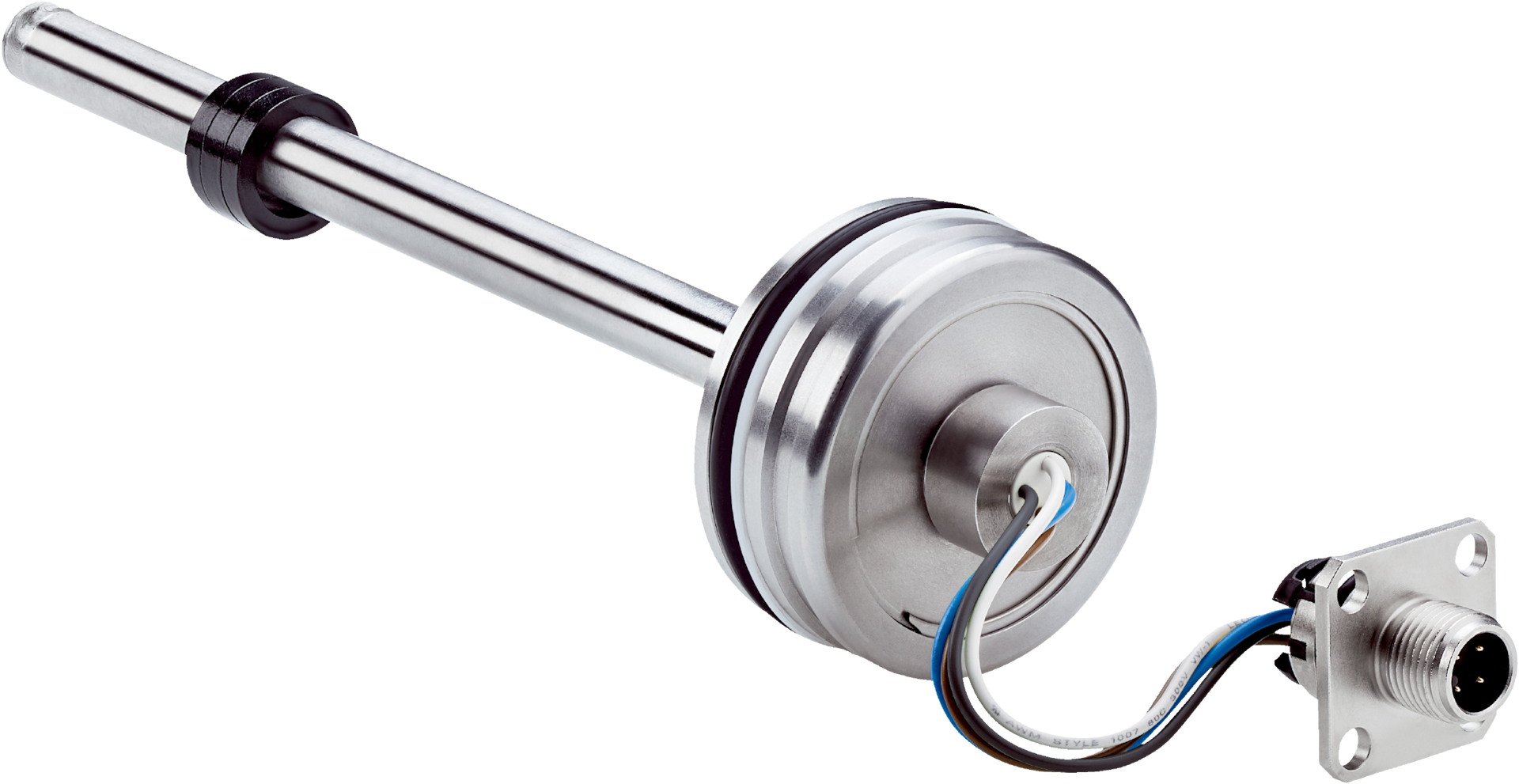

The SICK MAX48A-12A10GC0200 linear encoder offers precise position measurement with robust stainless steel construction, suitable for high-pressure industrial applications and harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

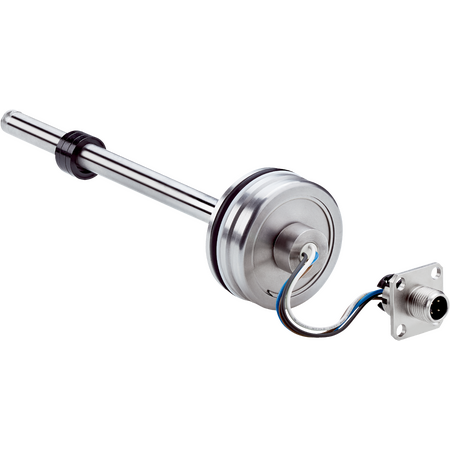

Product Name/Title: MAX48A-12A10GC0200 | Linear encoders
Brand: SICK
SKU: 1127452
Alternatively Known As: Linear position sensor, linear displacement encoder, hydraulic cylinder position sensor, analog linear transducer
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 200 mm
- Null zone: 30 mm
- Damping zone: 30 mm
- Operating pressure: 400 bar (max overload 480 bar)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog signal
- Switch-on time: < 250 ms
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm
- Temperature range: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Protection rating: IP67 housing, IP69K M12 connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), NBR O-ring
- Dimensions (H x L x W): 48mm x 80mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 200 mm with 30 mm null and damping zones
- High accuracy with ±0.1 mm hysteresis and ±0.2 mm repeatability
- Operating pressure up to 400 bar with overload pressure up to 480 bar
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Analog current output 4 mA to 20 mA
- Wide operating temperature range from -30 °C to +95 °C
- Overvoltage and reverse polarity protection
- Short switch-on time less than 250 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High accuracy reduces energy waste in industrial processes
- Low power consumption (≤1.25 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48A-12A10GC0200 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
