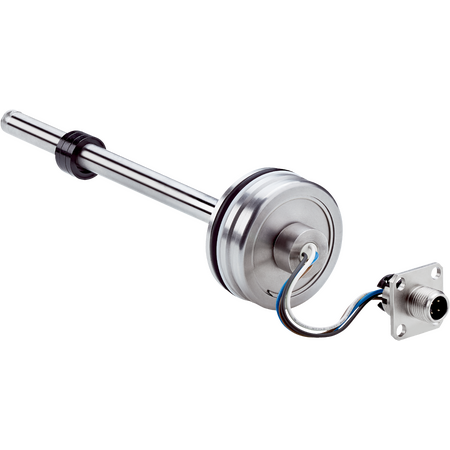

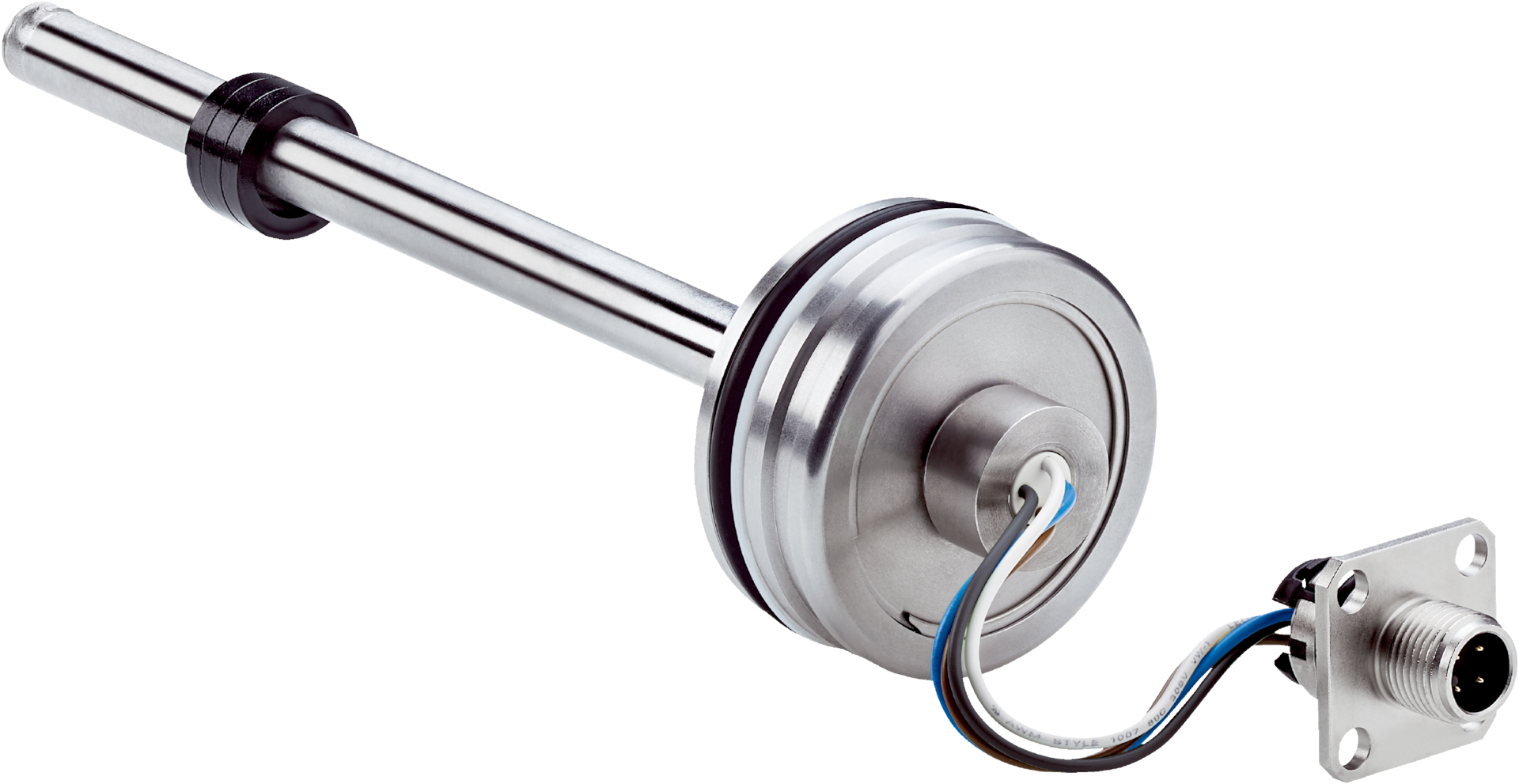

MAX48A-12A10GP0125 | Linear encoders
The SICK MAX48A-12A10GP0125 linear encoder offers precise position measurement up to 125 mm with robust stainless steel construction, suitable for high-pressure industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-12A10GP0125 | Linear encoders
Brand: SICK
SKU: 1117314
Alternatively Known As: Linear position sensor, Linear displacement sensor, Hydraulic cylinder encoder, Analog linear transducer
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 125 mm
- Null zone: 30 mm
- Damping zone: 30 mm
- Operating temperature: -30°C to +95°C
- Operating pressure: 400 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Output signal: Analog current 4 mA to 20 mA
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Accuracy: ±0.1 mm hysteresis, ±0.2 mm repeatability
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L)
- Protection rating: IP67 housing, IP69K M12 connector
- Connector: Male M12 type L, 4-pin
- Dimensions (H x L x W): 48mm x 125mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range of 0 mm to 125 mm with 30 mm null and damping zones
- High accuracy with ±0.1 mm hysteresis and ±0.2 mm repeatability
- Operating pressure up to 400 bar and temperature range from -30°C to +95°C
- Analog current output 4 mA to 20 mA
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage, reverse polarity, and short-circuit protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and positioning systems
- Hydraulic cylinder position measurement
- Machine tool feedback and control
- Mobile machinery and heavy equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤1.25 W) supports energy-efficient operation
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48A-12A10GP0125 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
