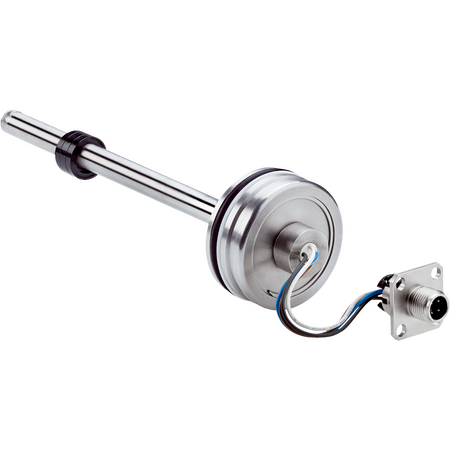

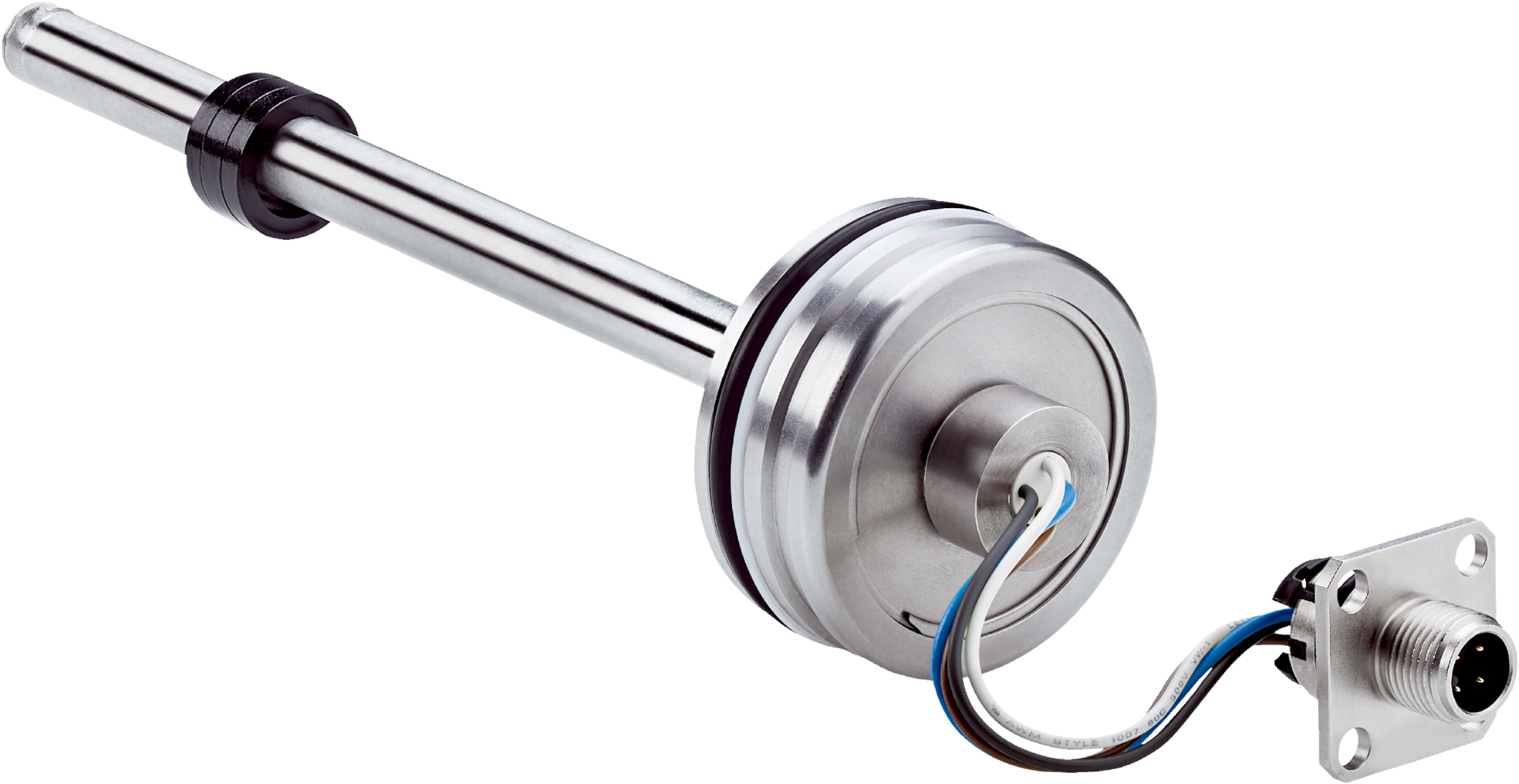

Product Name/Title: MAX48A-12A10HC0500 | Linear encoders
Brand: SICK
SKU: 1120026
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, position feedback sensor
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 500 mm
- Null zone: 30 mm
- Damping zone: 30 mm
- Operating pressure: 400 bar (max overload 480 bar)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog
- Accuracy: ±0.1 mm hysteresis, ±0.2 mm repeatability, ±0.25 mm linearity (50 to 500 mm range)
- Temperature range: -40 °C to +105 °C (electronics), -30 °C to +95 °C (fluid)
- Protection rating: IP67 housing, IP69K M12 connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), PTFE support ring
- Connection: Male M12 type L connector, 4-pin
- Dimensions (H x L x W): 48mm x 80mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range of 0 mm to 500 mm with 30 mm null and damping zones
- High accuracy with ±0.1 mm hysteresis and ±0.2 mm repeatability
- Operating pressure up to 400 bar with overload pressure up to 480 bar
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 male connector for harsh environments
- Analog current output 4 mA to 20 mA
- Wide operating temperature range from -40 °C to +105 °C (electronics)
