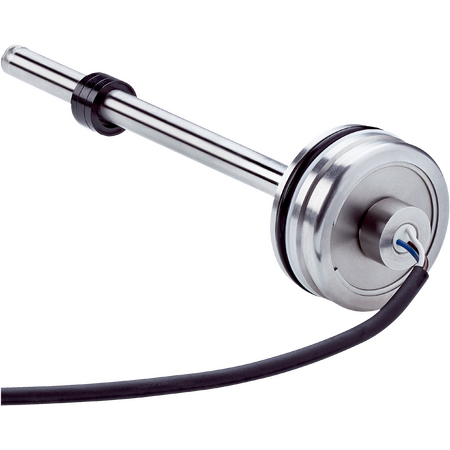

MAX48A-12A10K40220 | Linear encoders
The SICK MAX48A-12A10K40220 linear encoder offers precise position measurement with robust stainless steel housing, suitable for harsh industrial environments and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-12A10K40220 | Linear encoders
Brand: SICK
SKU: 1148037
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, position feedback sensor
Technical Specifications
- Installation housing diameter: 48 mm
- Measuring range: 0 mm to 220 mm
- Null zone: 30 mm
- Damping zone: 30 mm
- Operating pressure: 400 bar (max 480 bar overload)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms internal
- Accuracy: ±0.1 mm hysteresis, ±0.2 mm repeatability, ±0.25 mm linearity (50-500 mm range)
- Temperature range: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Protection rating: IP67
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Cable length: 1000 mm, 3-wire connecting cable
- Dimensions (H x L x W): 48mm x 220mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range of 0 mm to 220 mm with 30 mm null and damping zones
- High accuracy with ±0.1 mm hysteresis and ±0.2 mm repeatability
- Operating pressure up to 400 bar with overload pressure of 480 bar
- Operating temperature range from -30 °C to +95 °C
- IP67 rated stainless steel housing for robust environmental protection
- Analog current output 4 mA to 20 mA
- Overvoltage, reverse polarity, and short-circuit protection
- Vibration resistant according to IEC standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery and heavy equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption (≤1.25 W) supports energy-efficient operation
- High reliability reduces downtime and resource use for maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48A-12A10K40220 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
