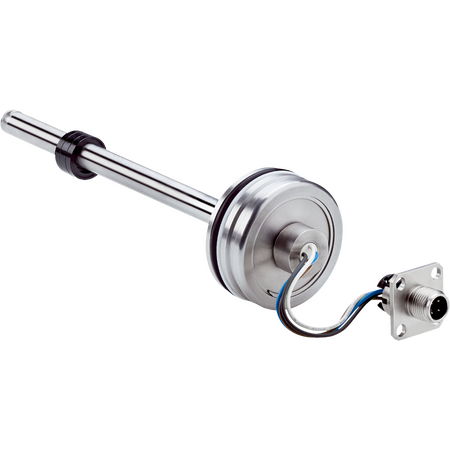

MAX48A-22A10EE0405 | Linear encoders
The SICK MAX48A-22A10EE0405 linear encoder offers precise position measurement with a robust stainless steel housing, suitable for high-pressure hydraulic applications and industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-22A10EE0405 | Linear encoders
Brand: SICK
SKU: 1131741
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer
Technical Specifications
- Measuring range: 0 mm to 405 mm
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm
- Operating pressure: 400 bar, Overload pressure 480 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog signal
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Protection rating: IP67 housing, IP69K M12 connector
- Connection: Male M12 type L, 4-pin connector
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Dimensions (H x L x W): 48mm x 100mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 405 mm with high accuracy
- Operating pressure up to 400 bar
- Analog current output 4 mA to 20 mA
- Robust stainless steel housing and pressure pipe
- IP67 rated housing and IP69K rated M12 connector
- High vibration resistance and temperature tolerance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation and control systems
- Position measurement in hydraulic cylinders
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High accuracy reduces energy waste in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MAX48A-22A10EE0405 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position measurement applications.
