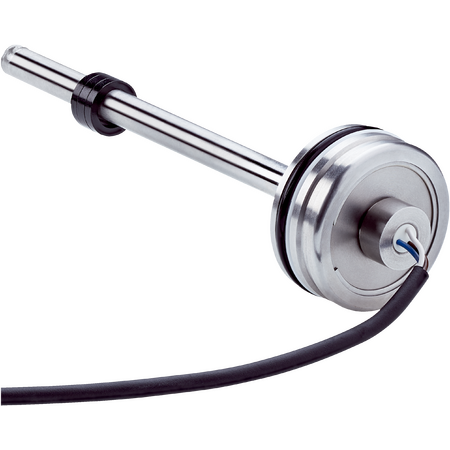

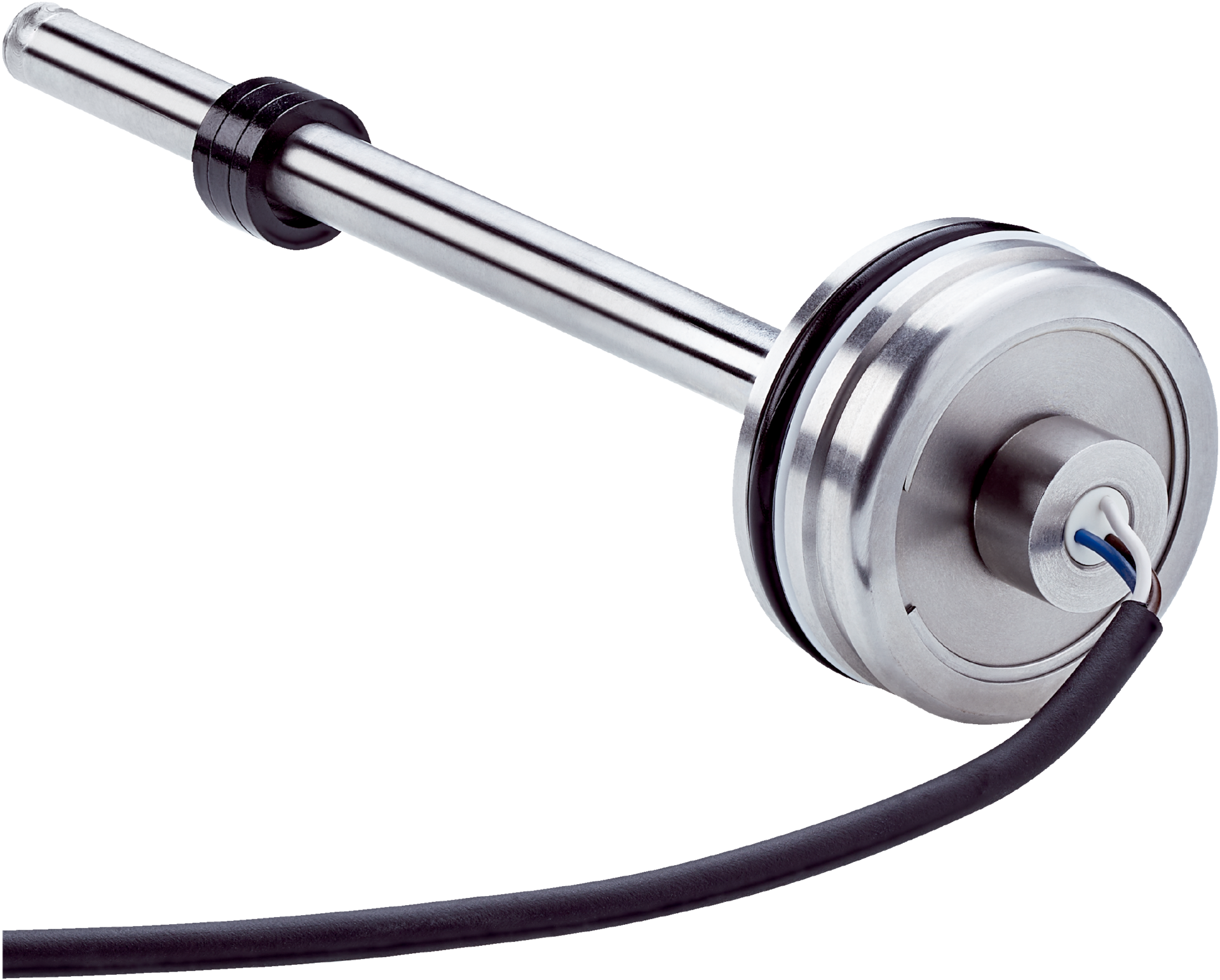

MAX48A-22A10K10300 | Linear encoders
The SICK MAX48A-22A10K10300 linear encoder offers precise position measurement with robust stainless steel construction, suitable for high-pressure hydraulic applications and industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-22A10K10300 | Linear encoders
Brand: SICK
SKU: 1131740
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer
Technical Specifications
- Measuring range: 0 mm to 300 mm
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50 to 500 mm range)
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog signal
- Operating pressure: 400 bar nominal, 480 bar overload
- Switch-on time: < 250 ms
- Connection: 3-wire cable, 300 mm length
- Protection rating: IP67 (EN 60529)
- Material: Housing stainless steel 1.4305 (AISI 303), Pressure pipe stainless steel 1.4404 (AISI 316L)
- Dimensions (H x L x W): 48mm x 100mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range of 0 mm to 300 mm with high accuracy
- Operating pressure up to 400 bar with overload pressure up to 480 bar
- Stainless steel housing and pressure pipe for durability
- IP67 rated housing for protection against dust and water
- Analog current output (4 mA to 20 mA)
- High vibration resistance and EMC compliance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation and control systems
- Position measurement in hydraulic cylinders
- High-pressure environments requiring precise linear measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption (≤ 1.25 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MAX48A-22A10K10300 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position measurement applications.
