MAX48A-22C7FFA0160 | Linear encoders

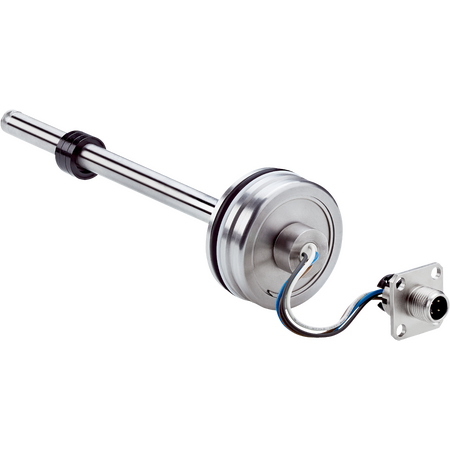

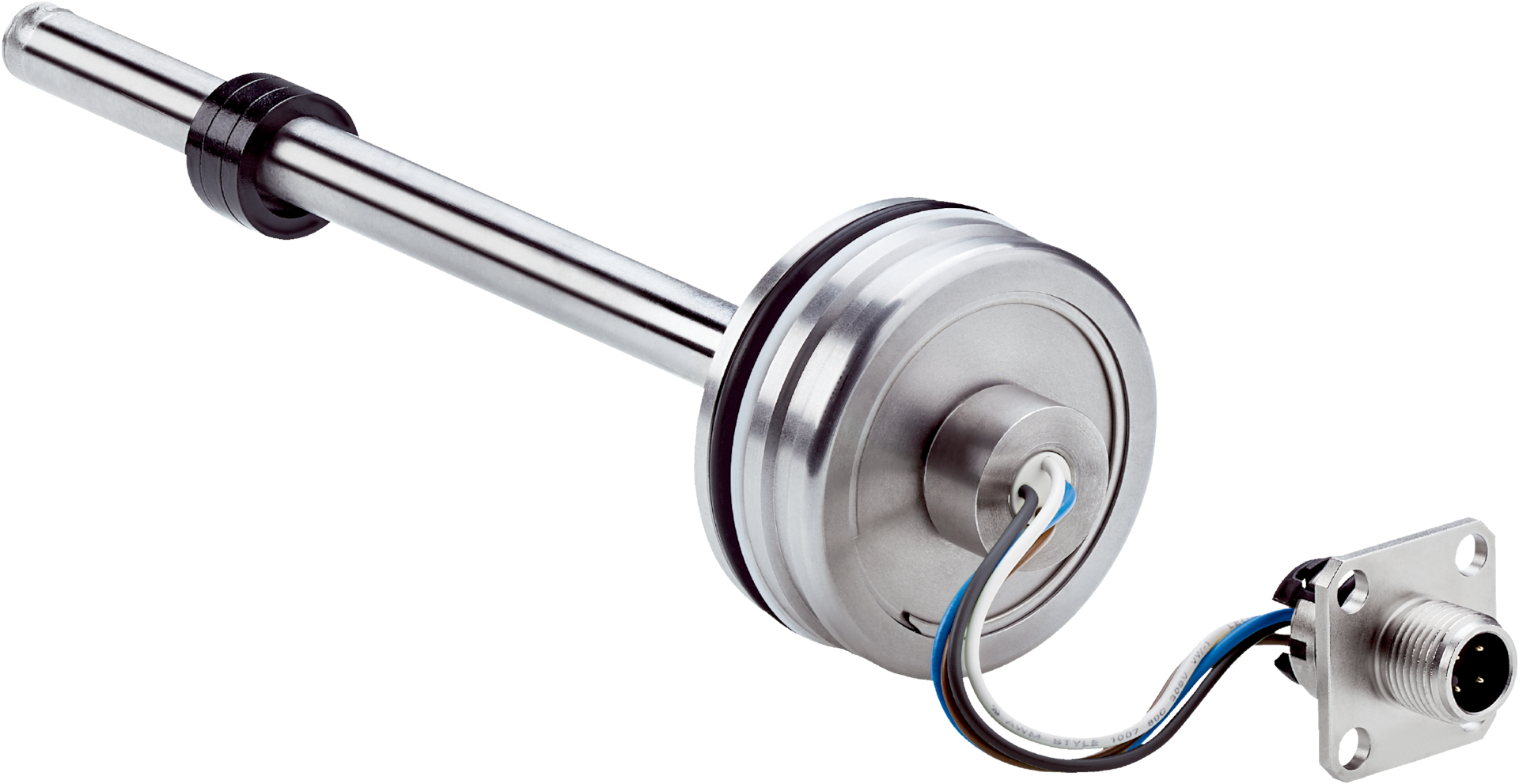

The SICK MAX48A-22C7FFA0160 linear encoder offers precise position and speed measurement with robust stainless steel construction, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-22C7FFA0160 | Linear encoders
Brand: SICK
SKU: 1135836
Alternatively Known As: Linear position sensor, linear displacement encoder, hydraulic cylinder encoder, CANopen linear encoder
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 160 mm
- Speed range: 0 to 1,000 mm/s
- Null zone: 30 mm
- Damping zone: 36 mm
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms
- Communication interface: CANopen (CiA DS-301, DS-406)
- Bus protocol: CANopen
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50 to 500 mm range)
- Temperature drift: ≤ ±0.25 mm after 2 min warming up
- Operating temperature: -30 °C to +95 °C
- Storage temperature: -20 °C to +65 °C
- Operating pressure: 400 bar, Overload pressure 480 bar
- Enclosure rating: IP67 housing, IP69K M12 connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), NBR O-ring
- Dimensions (H x L x W): 48mm x 160mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range: 0 mm to 160 mm
- Speed measurement up to 1,000 mm/s
- High accuracy with hysteresis ±0.1 mm and repeatability ±0.2 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- CANopen communication interface with configurable transmission rate
- Operating temperature range from -30 °C to +95 °C
- Overvoltage and reverse polarity protection
- Short switch-on time < 250 ms
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for precise position and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48A-22C7FFA0160 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
