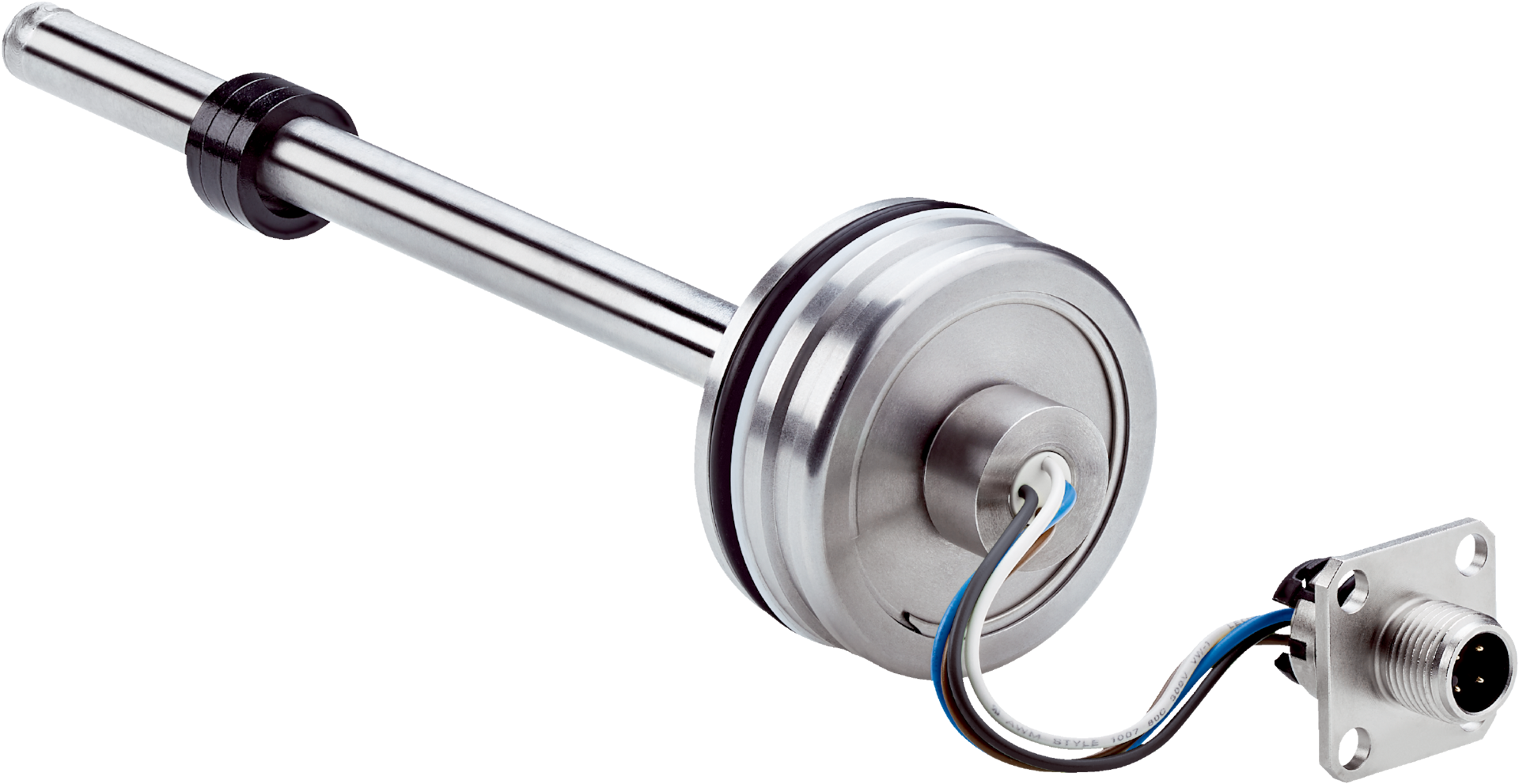

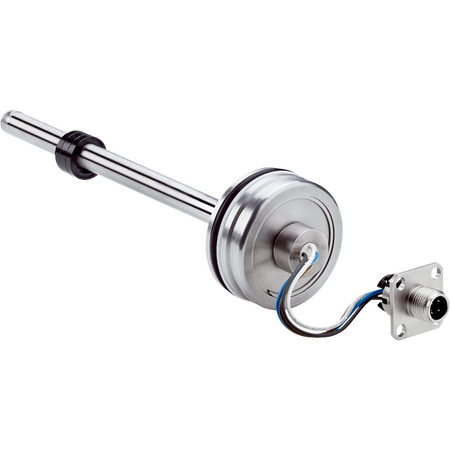

Product Name/Title: MAX48A-22JFDSC0330 | Linear encoders
Brand: SICK
SKU: 1114932
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, linear displacement sensor, position transducer
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 330 mm
- Null zone: 30 mm
- Damping zone: 36 mm
- Operating temperature: -30 °C to +95 °C
- Operating pressure: 400 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Switch-on current: Typical 5.0 A / 50 µs
- Measuring frequency (internal): 1 ms
- Transmission rate (cycle time): 20 ms
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50 to 500 mm range)
- Temperature drift: ≤ ±0.25 mm after 2 min warming up
- Connection type: Male M12 type L connector, 5-pin
- Communication interface: SAE J1939 with 250 kbit/s baud rate
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Protection rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 48mm x 330mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 330 mm with 30 mm null zone and 36 mm damping zone
- High accuracy with ±0.1 mm hysteresis and ±0.2 mm repeatability
- Operating temperature range from -30 °C to +95 °C
- Operating pressure up to 400 bar
- Supply voltage 24 V DC (8 to 32 V DC)
- Fast switch-on time under 250 ms
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Communication via SAE J1939 protocol with 250 kbit/s baud rate
- Overvoltage and reverse polarity protection
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure correct mounting, electrical connection, and calibration for optimal performance.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool positioning
- Mobile machinery and agricultural equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
