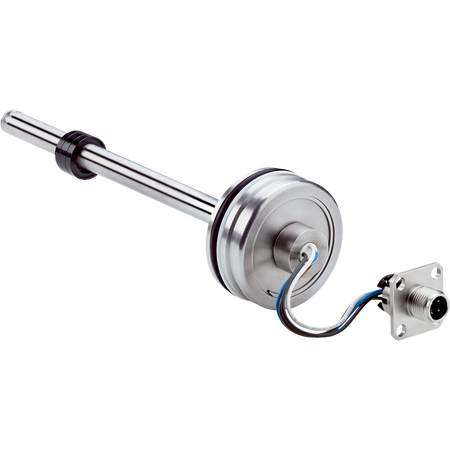

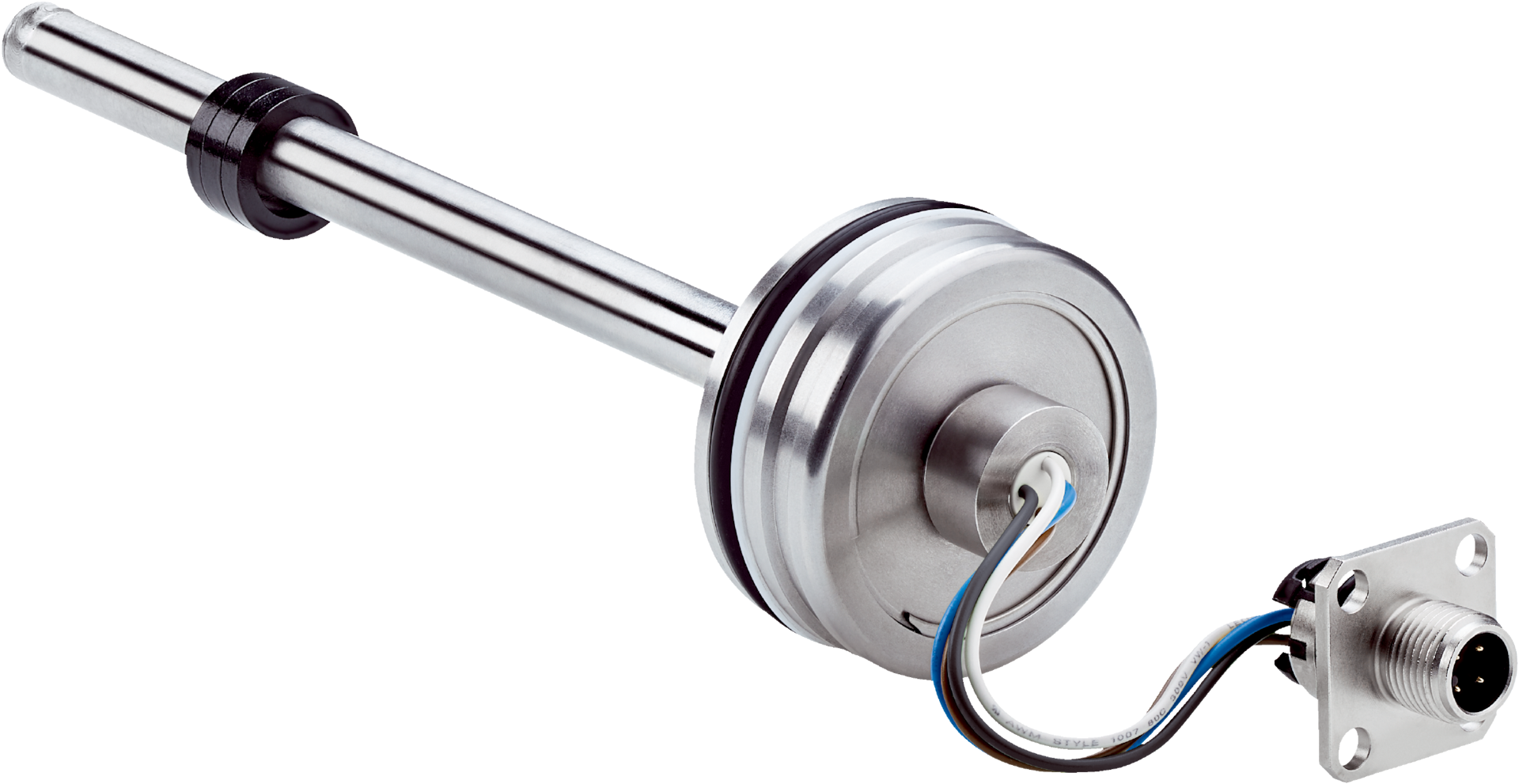

Product Name/Title: MAX48A-22V10GB0205 | Linear encoders
Brand: SICK
SKU: 1115064
Alternatively Known As: Linear position sensor, linear displacement sensor, hydraulic cylinder encoder, analog linear encoder
Technical Specifications
- Installation housing diameter: 48 mm
- Measuring range: 0 to 205 mm
- Null zone: 30 mm
- Damping zone: 36 mm
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Operating pressure: 400 bar nominal, 480 bar max overload, 600 bar test pressure
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current consumption: ≤ 30 mA
- Power consumption: ≤ 0.75 W
- Output signal: Analog voltage 0.5 V to 4.5 V DC
- Switch-on time: < 250 ms
- Connector: Male M12 type L, 4-pin
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Protection rating: IP67 housing, IP69K connector
- Vibration resistance: Up to 20 g sine and broadband noise
- EMC compliance: EN 61000-6-2/61000-6-3, ISO 14982, ISO 7637-2, ISO 61000-4-2
- Dimensions (H x L x W): 48mm x 205mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range: 0 mm to 205 mm
- High accuracy with hysteresis ±0.1 mm and repeatability ±0.2 mm
- Operating pressure up to 400 bar
- Supply voltage 24 V DC (8 to 32 V DC)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Stainless steel housing and pressure pipe for durability
- Analog voltage output from 0.5 V DC to 4.5 V DC
- Short switch-on time less than 250 ms
- Overvoltage and reverse polarity protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces downtime and resource waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK MAX48A-22V10GB0205 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
