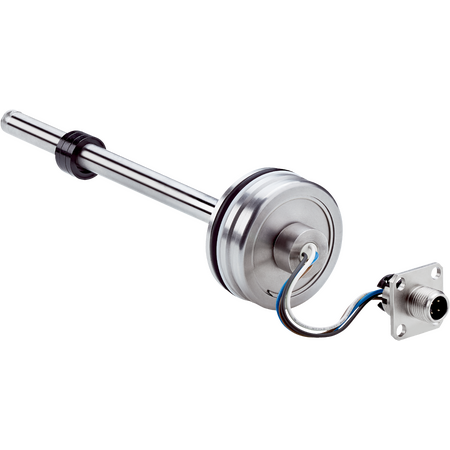

MAX48A-22V10GE0450 | Linear encoders
The SICK MAX48A-22V10GE0450 linear encoder offers precise position measurement with a 450 mm range, robust stainless steel construction, and high environmental protection ratings, ideal for industrial automation and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-22V10GE0450 | Linear encoders
Brand: SICK
SKU: 1131748
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, industrial linear position sensor
Technical Specifications
- Installation housing: 48 mm, IN cylinder mounting
- Measuring range: 0 mm to 450 mm
- Null zone: 30 mm
- Damping zone: 36 mm
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Air humidity: 90% max, no condensation
- Operating pressure: 400 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50 to 500 mm range)
- Output signal: Analog voltage 0.5 V DC to 4.5 V DC
- Connection: Male M12 type L, 4-pin
- Material: Stainless steel housing (1.4305), pressure pipe (1.4404), O-ring (NBR 70), support ring (PTFE)
- Protection rating: IP67 housing, IP69K M12 connector
- Electrical protections: Overvoltage, reverse polarity, short-circuit
- Dimensions (H x L x W): 48mm x 450mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing with IN cylinder mounting
- Measuring range of 0 mm to 450 mm
- High accuracy with ±0.1 mm hysteresis and ±0.2 mm repeatability
- Operating pressure up to 400 bar
- Supply voltage 24 V DC (8 to 32 V DC)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Stainless steel housing and pressure pipe for durability
- Analog voltage output from 0.5 V DC to 4.5 V DC
- Overvoltage and reverse polarity protection
- Short switch-on time less than 250 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor mounting and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High accuracy reduces energy waste in automated processes
- Robust design minimizes environmental impact from failures and downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48A-22V10GE0450 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
