MAX48A-22V20EE0750 | Linear encoders

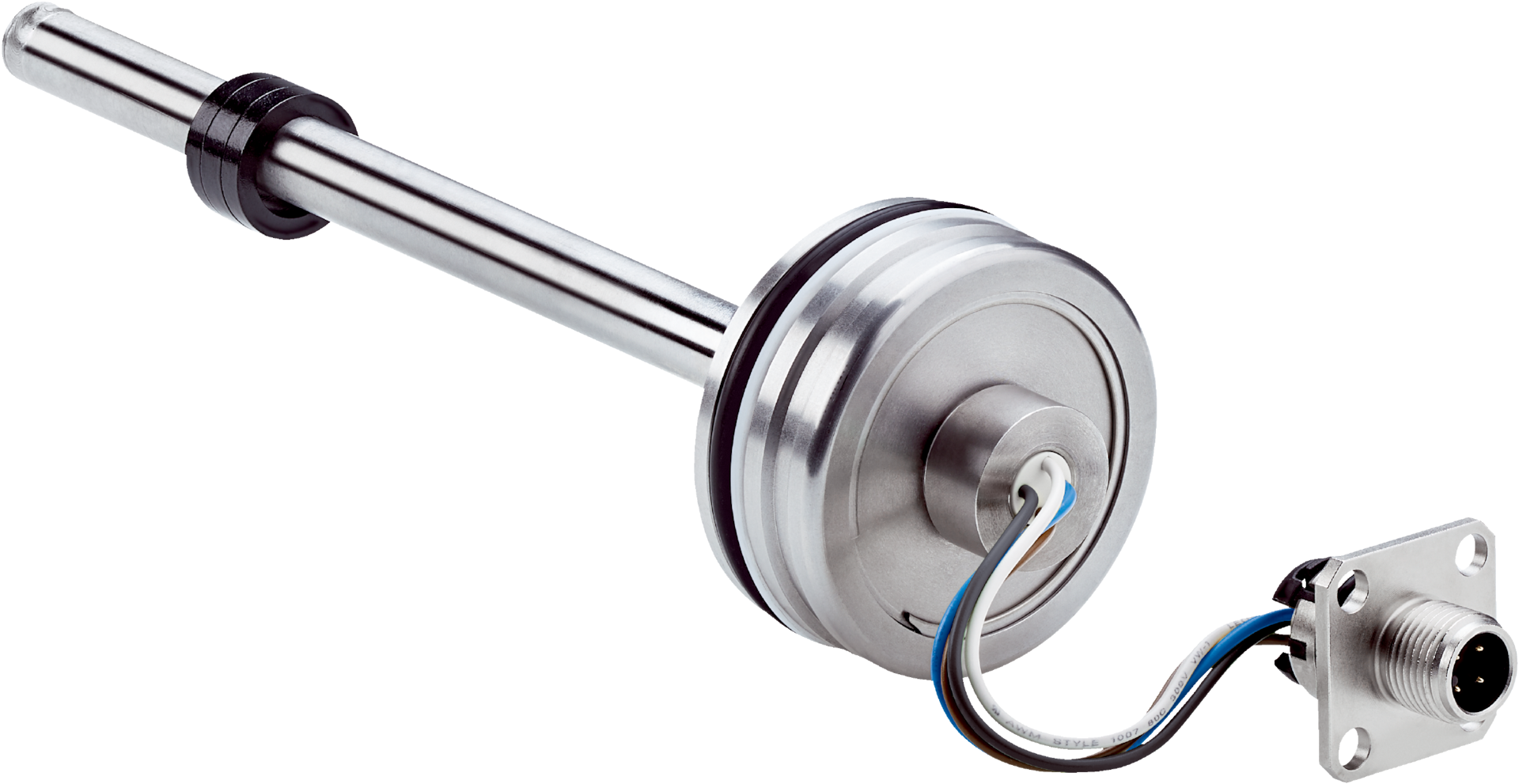

The SICK MAX48A-22V20EE0750 linear encoder offers precise position measurement with robust stainless steel construction, suitable for industrial automation and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

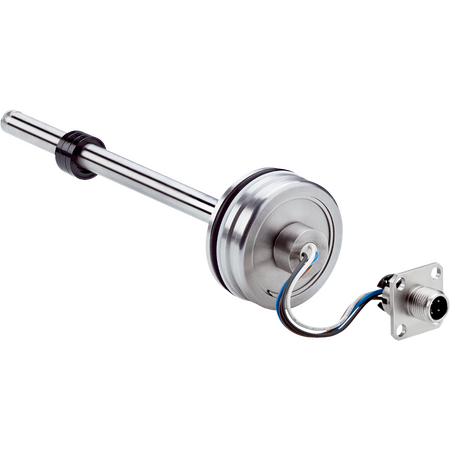

Product Name/Title: MAX48A-22V20EE0750 | Linear encoders
Brand: SICK
SKU: 1134995
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder encoder, Analog linear transducer
Technical Specifications
- Installation housing diameter: 48 mm
- Measuring range: 0 mm to 750 mm
- Null zone: 30 mm
- Damping zone: 36 mm
- Operating temperature: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 400 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Switch-on current: Typical 5.0 A / 50 µs
- Measuring frequency: 2 ms
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50 to 500 mm range)
- Temperature drift: ≤ ±0.25 mm after 2 min warming up
- Communication interface: Analog voltage output 0.25 V DC to 4.75 V DC
- Connection: Male M12 type L connector, 4-pin
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Load resistance: RL ≥ 10 kΩ
- Overvoltage protection: ≤ 36 V at all poles during power-up (60 s)
- Reverse polarity protection: ≤ 36 V (ISO 16750-2)
- Insulation resistance: ≥ 10 MΩ (ISO 16750-2)
- Dielectric strength: 500 V DC to housing (ISO 16750-2)
- Short-circuit protection: VS – GND on housing
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- O-ring: NBR 70
- Support ring: PTFE
- M12 flange: Nickel-plated brass with O-ring (NBR)
- Wire length: 100 mm
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 48mm x 100mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing with IN cylinder mounting
- Measuring range up to 750 mm
- High accuracy with ±0.1 mm hysteresis and ±0.2 mm repeatability
- Operating temperature range from -30 °C to +95 °C
- Pressure resistance up to 400 bar
- Analog voltage output from 0.25 V DC to 4.75 V DC
- Robust stainless steel housing and pressure pipe
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage, reverse polarity, and short-circuit protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor mounting and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High accuracy reduces energy waste in automated processes
- Low power consumption (≤ 0.75 W) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MAX48A-22V20EE0750 linear encoder is available for immediate purchase. Ideal for industrial automation and hydraulic cylinder position sensing applications.
