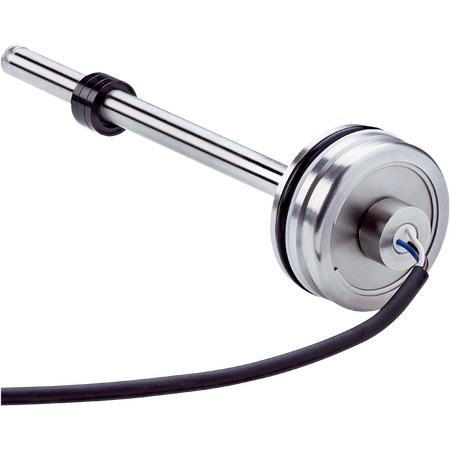

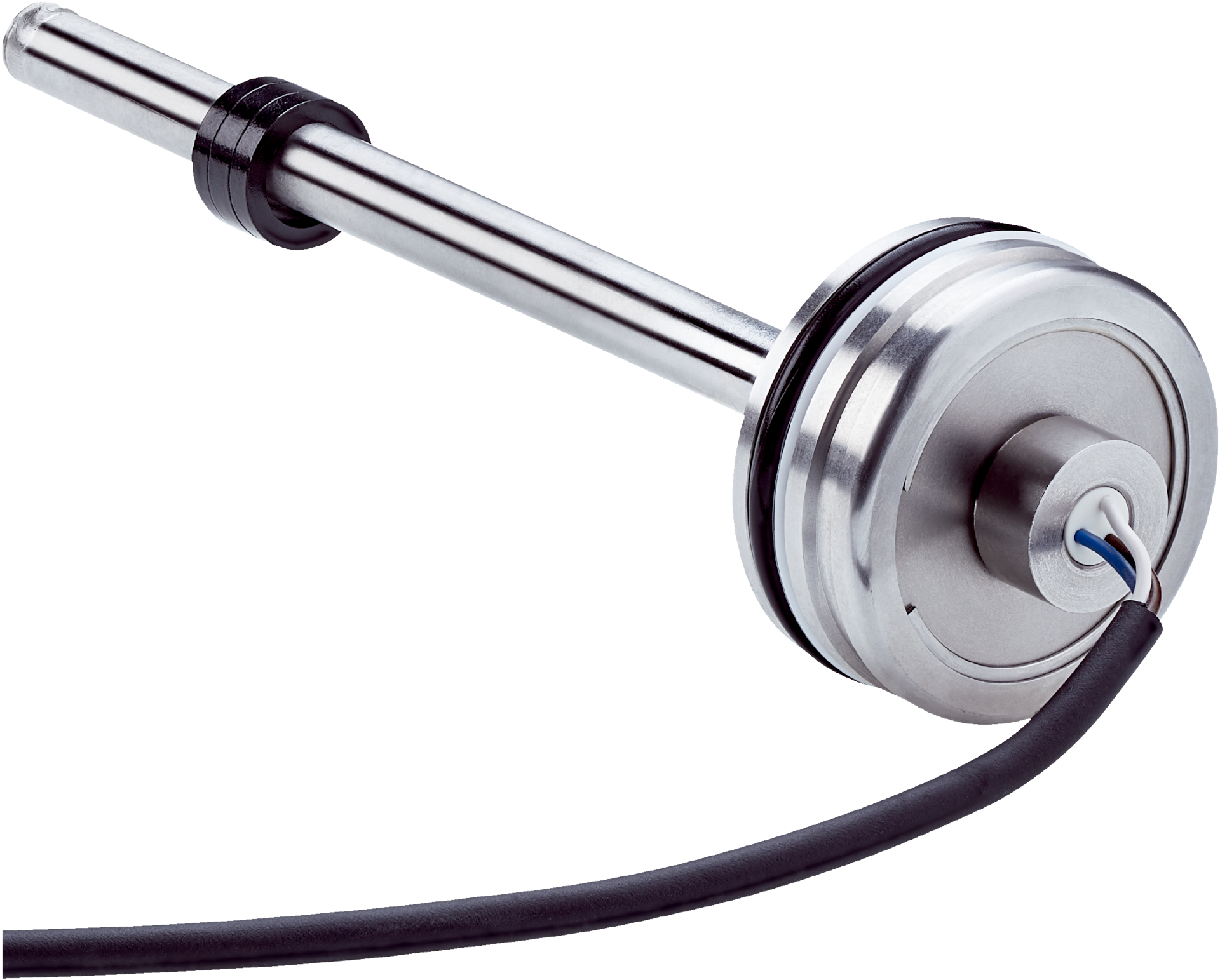

MAX48A-32C02T80270 | Linear encoders
The SICK MAX48A-32C02T80270 linear encoder offers precise position and speed measurement with robust stainless steel construction, CANopen interface, and high operating pressure tolerance, ideal for industrial automation and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-32C02T80270 | Linear encoders
Brand: SICK
SKU: 1127944
Alternatively Known As: Linear position sensor, linear displacement encoder, hydraulic cylinder encoder, CANopen linear transducer
Technical Specifications
- Installation housing diameter: 48 mm
- Measuring range: 0 to 270 mm
- Speed measurement range: 0 to 1,000 mm/s
- Null zone: 30 mm, Damping zone: 63 mm
- Operating fluid temperature: -30 °C to +95 °C
- Operating pressure: 400 bar (max overload 480 bar)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Communication: CANopen CiA DS-301 and DS-406
- Cable length: 5,000 mm
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50-500 mm range)
- Protection rating: IP67
- Overvoltage protection: ≤ 36 V at all poles during power-up
- Reverse polarity protection compliant with ISO 16750-2
- Insulation resistance: ≥ 10 MΩ
- Dielectric strength: 500 V DC to housing
- Dimensions (H x L x W): 48mm x 270mm x 48mm
- Weight: 1.5 kg
Key Features
- 48 mm installation housing suitable for IN cylinder mounting
- Measuring range up to 270 mm with position and speed output
- High accuracy with hysteresis ±0.1 mm and repeatability ±0.2 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- Operating pressure up to 400 bar and fluid temperature range -30 °C to +95 °C
- CANopen communication interface with configurable transmission rate
- IP67 rated enclosure for protection against dust and water
- Overvoltage and reverse polarity protection
- Long cable length of 5,000 mm for flexible installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and industrial sensor mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery requiring robust linear measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48A-32C02T80270 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
