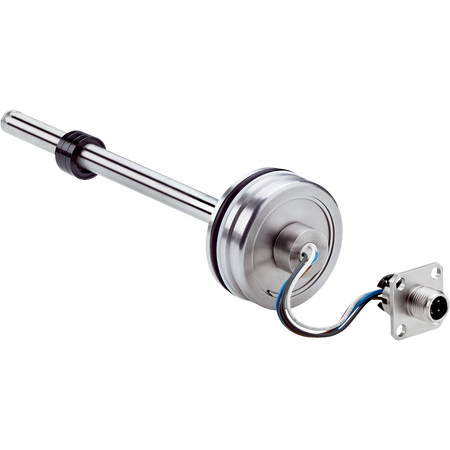

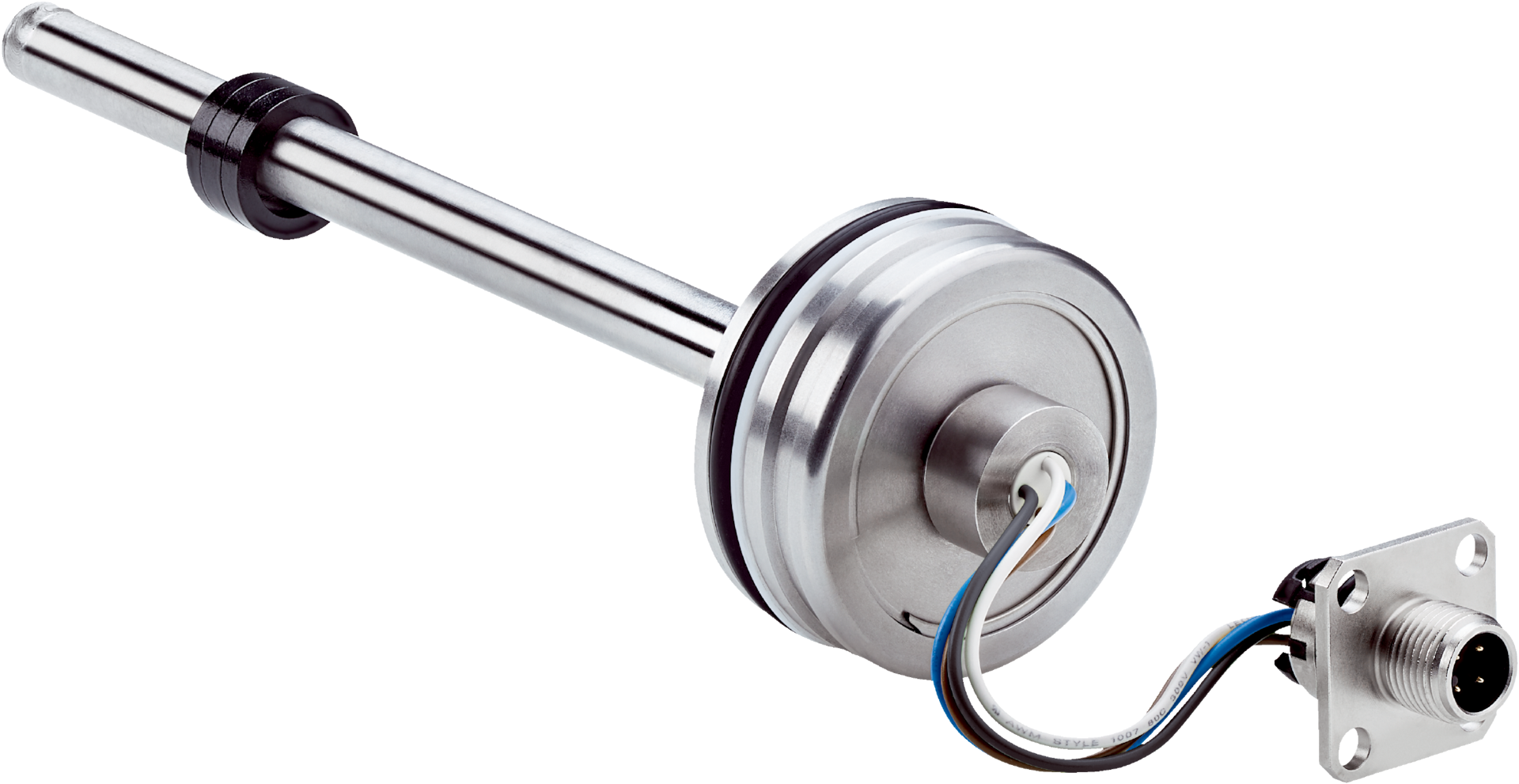

MAX48A-32C7FFC2300 | Linear encoders
The SICK MAX48A-32C7FFC2300 linear encoder offers precise position and speed measurement with robust stainless steel construction, suitable for high-pressure industrial applications with CANopen interface.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-32C7FFC2300 | Linear encoders
Brand: SICK
SKU: 1126210
Alternatively Known As: Linear position sensor, Linear displacement encoder, CANopen linear encoder, Hydraulic cylinder position sensor
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 2300 mm
- Speed measurement: 0 to 1000 mm/s
- Null zone: 30 mm, Damping zone: 63 mm
- Operating pressure: 400 bar (max overload 480 bar)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms internal
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50-500 mm range)
- Temperature drift: ≤ ±0.25 mm after 2 min warm-up
- Connection: Male M12 type L connector, 5-pin
- Communication: CANopen CiA DS-301 and DS-406
- Protection rating: IP67 housing, IP69K M12 connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), NBR O-ring
- Dimensions (H x L x W): 48mm x 80mm x 48mm
- Weight: 1.2 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 2300 mm with positioning and speed measurement
- High accuracy with hysteresis ±0.1 mm and repeatability ±0.2 mm
- Operating pressure up to 400 bar with overload pressure up to 480 bar
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- CANopen communication interface with configurable transmission rate
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Wide operating temperature range from -30 °C to +95 °C
- Overvoltage and reverse polarity protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen devices and high-pressure hydraulic systems to ensure safety and optimal performance.
Applications
- Industrial automation for precise positioning and speed measurement
- Hydraulic cylinder position feedback
- Machine tool and manufacturing equipment monitoring
- High-pressure environments requiring robust sensor solutions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48A-32C7FFC2300 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
