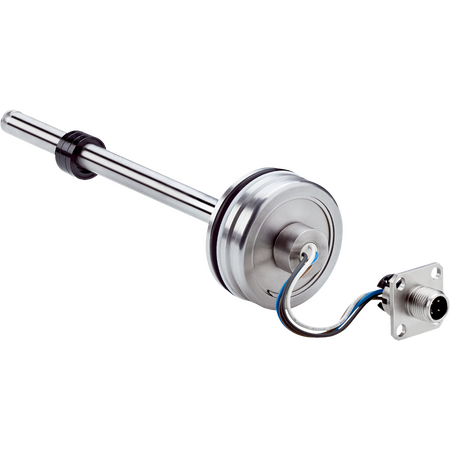

MAX48A-32E06FE0950 | Linear encoders
The SICK MAX48A-32E06FE0950 linear encoder offers precise position and speed measurement with robust stainless steel construction, CANopen interface, and high pressure and temperature resistance for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-32E06FE0950 | Linear encoders
Brand: SICK
SKU: 1154272
Alternatively Known As: Linear position sensor, linear displacement encoder, hydraulic cylinder encoder, CANopen linear transducer
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 950 mm
- Speed measurement: 0 to 1,000 mm/s
- Null zone: 30 mm, Damping zone: 63 mm
- Operating temperature: -30 °C to +95 °C
- Operating pressure: 400 bar, Overload pressure: 480 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms internal
- Communication: CANopen CiA DS-301 and DS-406
- Connector: Male M12 type L, 5-pin
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50-500 mm range)
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), NBR O-ring
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 48mm x 100mm x 48mm
- Weight: 1.2 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 950 mm with position and speed output
- High accuracy with typical hysteresis ±0.1 mm and repeatability ±0.2 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- CANopen communication interface with configurable transmission rate
- Operating pressure up to 400 bar and temperature range from -30 °C to +95 °C
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection
- Fast switch-on time under 250 ms
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting, electrical connection, and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery requiring robust linear measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48A-32E06FE0950 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
