MAX48A-32J07FP0175 | Linear encoders

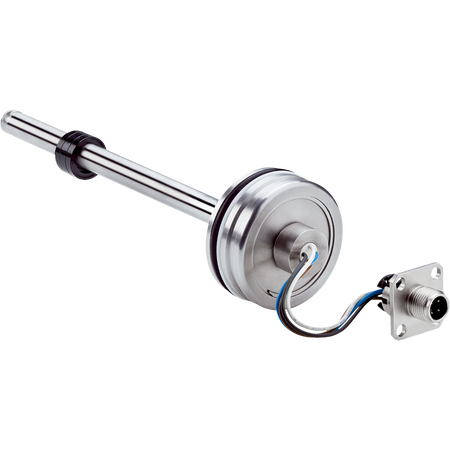

The SICK MAX48A-32J07FP0175 linear encoder offers precise position measurement with robust stainless steel construction, suitable for high-pressure industrial applications and harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-32J07FP0175 | Linear encoders
Brand: SICK
SKU: 1130056
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder position sensor, SAE J1939 linear encoder
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 175 mm
- Null zone: 30 mm
- Damping zone: 63 mm
- Operating pressure: 400 bar (max overload 480 bar)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms internal
- Transmission rate: 20 ms cycle time
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm
- Temperature drift: ≤ ±0.25 mm after 2 min warming up
- Communication interface: SAE J1939, baud rate 250 kbit/s
- Connection: Male M12 type L connector, 5-pin
- Material: Stainless steel housing (1.4305), pressure pipe (1.4404), O-ring NBR 70
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 48mm x 175mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range of 0 mm to 175 mm with null zone of 30 mm and damping zone of 63 mm
- Operating pressure up to 400 bar with overload pressure of 480 bar
- High accuracy with hysteresis ±0.1 mm, repeatability ±0.2 mm, and linearity ±0.25 mm
- Robust stainless steel housing (1.4305 AISI 303) and pressure pipe (1.4404 AISI 316L)
- IP67 rated housing and IP69K rated M12 male connector for harsh environments
- Communication interface SAE J1939 with 250 kbit/s baud rate
- Overvoltage and reverse polarity protection
- Operating temperature range from -40 °C to +105 °C (electronics)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation and control systems
- Position measurement in hydraulic cylinders
- High-pressure environments requiring precise linear measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48A-32J07FP0175 linear encoder is available for immediate purchase. Ideal for industrial automation requiring precise linear position measurement in harsh and high-pressure environments.
