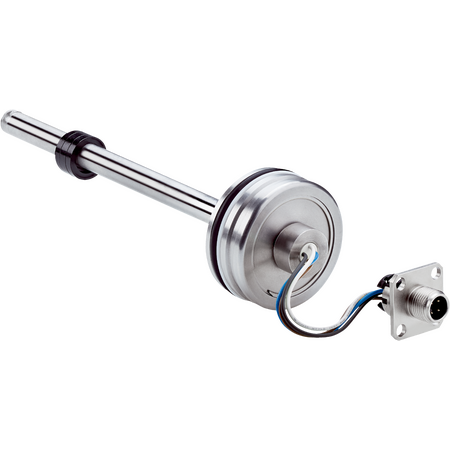

MAX48A-32J7FFC0390 | Linear encoders

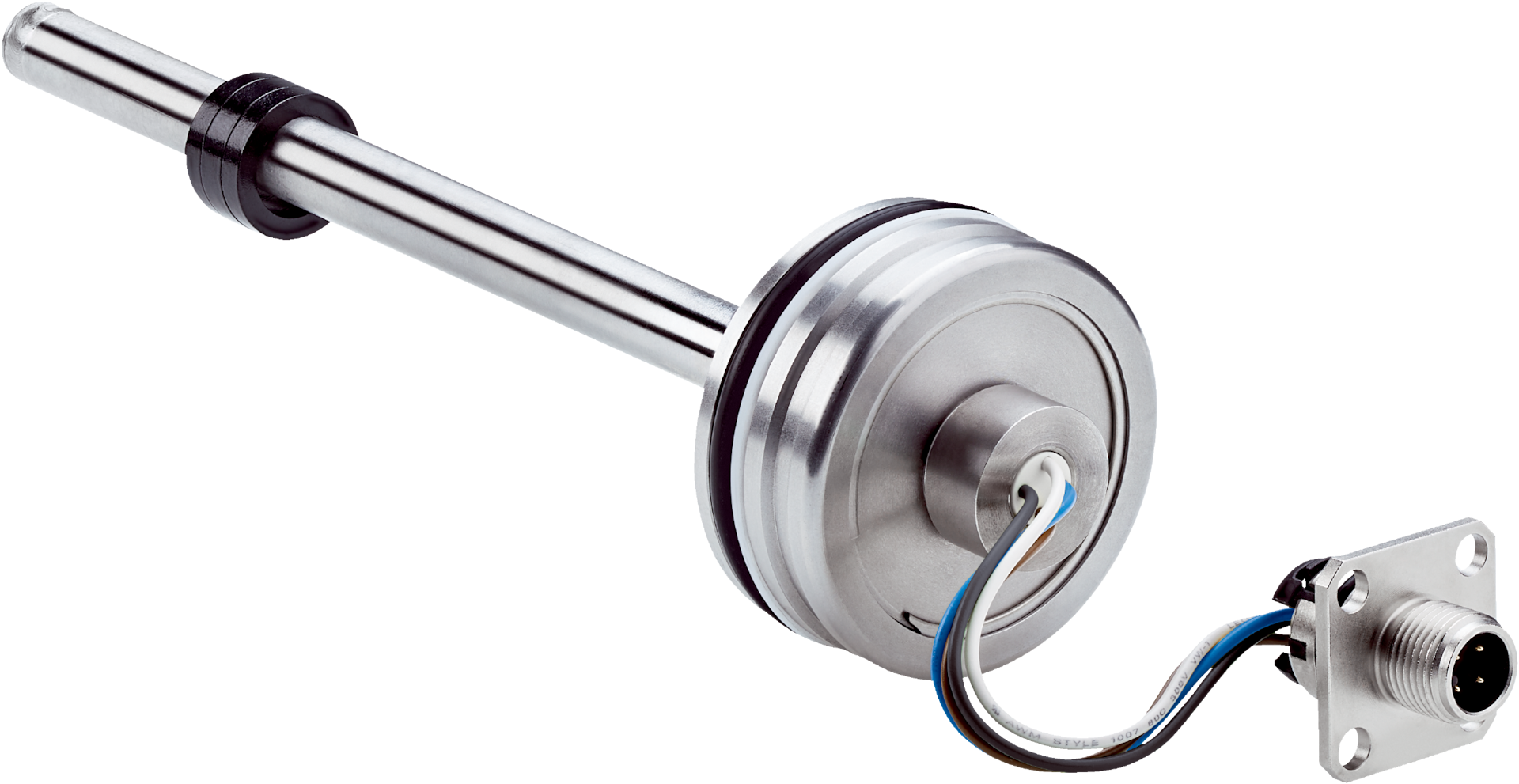

The SICK MAX48A-32J7FFC0390 linear encoder offers precise position measurement with robust stainless steel housing, suitable for high-pressure industrial applications and cylinder mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-32J7FFC0390 | Linear encoders
Brand: SICK
SKU: 1124653
Alternatively Known As: Linear position sensor, Linear displacement encoder, Cylinder linear encoder, Industrial linear transducer
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 390 mm
- Null zone: 30 mm, Damping zone: 63 mm
- Operating temperature: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 400 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms internal
- Transmission rate: 20 ms cycle time
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50 to 500 mm range)
- Temperature drift: ≤ ±0.25 mm after 2 min warming up
- Connection: Male M12 type L connector, 5-pin
- Communication: SAE J1939 protocol, 250 kbit/s baud rate
- Power consumption: ≤ 0.75 W, Current consumption: ≤ 30 mA
- Protection: Overvoltage, reverse polarity, short-circuit
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe: Stainless steel 1.4404 (AISI 316L)
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 48mm x 100mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range from 0 mm to 390 mm
- High accuracy with hysteresis ±0.1 mm and repeatability ±0.2 mm
- Operating temperature range from -30 °C to +95 °C
- Supply voltage 24 V DC (8 to 32 V DC)
- IP67 rated housing and IP69K rated M12 male connector
- Robust stainless steel housing and pressure pipe
- Overvoltage and reverse polarity protection
- Communication interface SAE J1939 with 250 kbit/s baud rate
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor mounting and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Cylinder mounting applications requiring robust linear encoders
- High-pressure environments up to 400 bar
- Use in agricultural and forestry machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- Complies with EU and international environmental directives including China RoHS
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48A-32J7FFC0390 linear encoder is available for immediate purchase. Ideal for industrial automation and cylinder mounting applications requiring high precision and durability.
