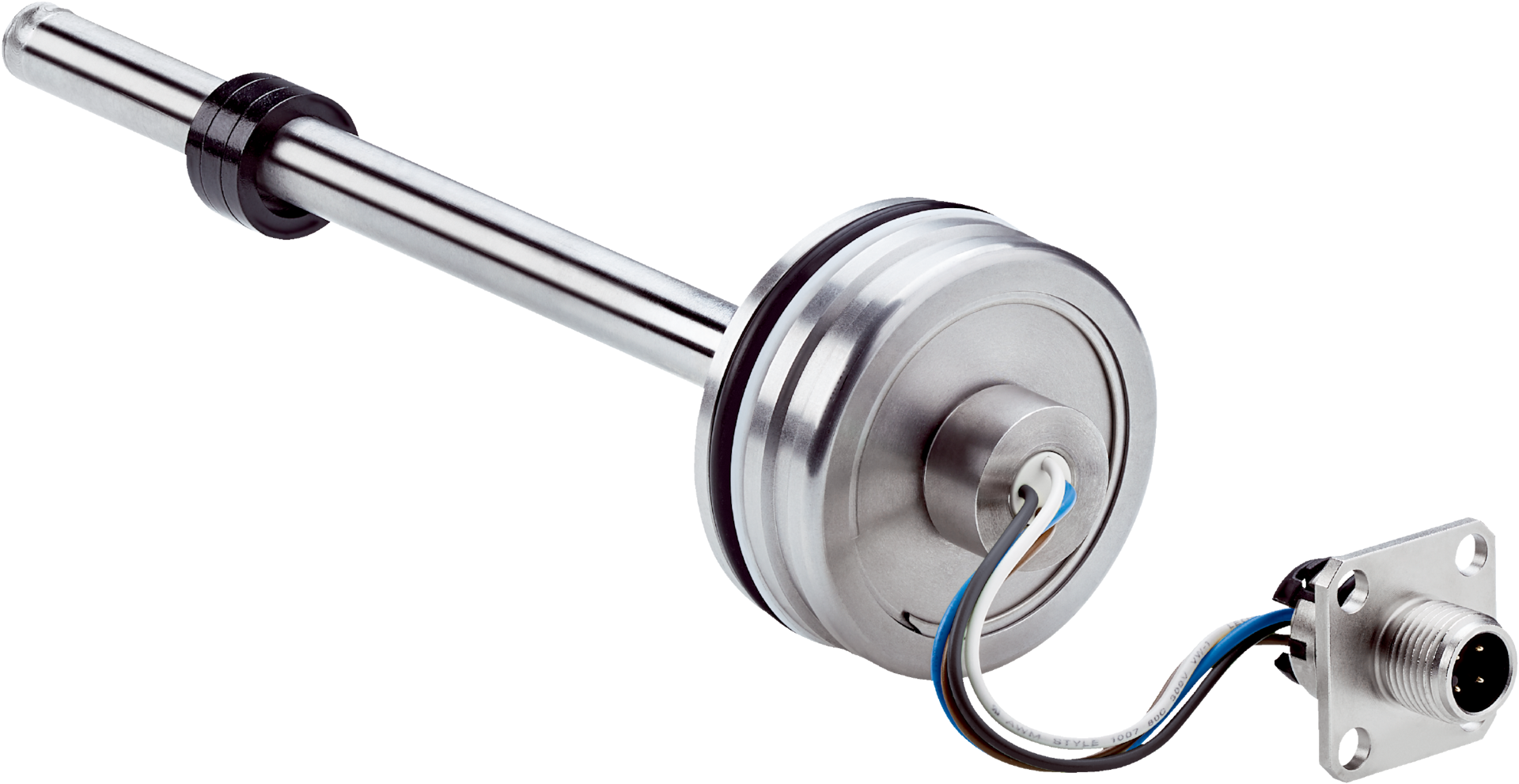

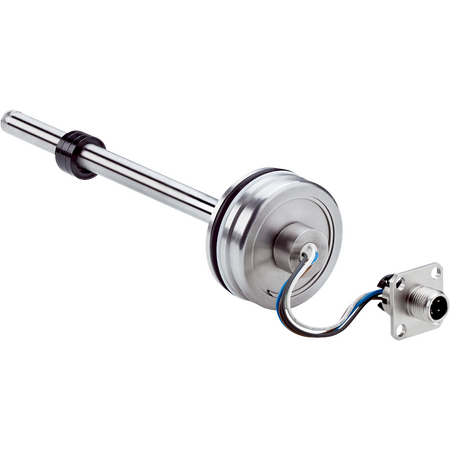

MAX48A-32JFDFE2100 | Linear encoders
The SICK MAX48A-32JFDFE2100 linear encoder offers precise position measurement up to 2100 mm with robust stainless steel construction, suitable for demanding industrial and mobile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-32JFDFE2100 | Linear encoders
Brand: SICK
SKU: 1133627
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, linear displacement transducer, industrial linear encoder
Technical Specifications
- Measuring range: 0 mm to 2100 mm
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50 to 500 mm range), ±0.04% F.S. (500 to 2500 mm range)
- Operating pressure: 400 bar nominal, 480 bar overload
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Connection: Male M12 type L, 5-pin connector
- Communication interface: SAE J1939 with 250 kbit/s baud rate
- Protection rating: IP67 housing, IP69K connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), NBR O-ring, PTFE support ring
- Dimensions (H x L x W): 48mm x 2100mm x 48mm
- Weight: 1.2 kg
Key Features
- 48 mm installation housing suitable for IN cylinder mounting
- Measuring range up to 2100 mm with high accuracy and repeatability
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- High operating pressure up to 400 bar with overload capacity to 480 bar
- Operating temperature range from -30 °C to +95 °C
- IP67 rated housing and IP69K rated M12 male connector for harsh environments
- Fast measuring frequency of 1 ms and transmission cycle time of 20 ms
- Overvoltage and reverse polarity protection included
- Communication via SAE J1939 protocol with 5-pin M12 connector
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation and positioning systems
- Hydraulic cylinder position measurement
- Machine tool feedback and control
- Mobile machinery and agricultural equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please consult SICK for specific warranty terms.
Available Now
The SICK MAX48A-32JFDFE2100 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
