MAX48A-32JFDSE0420 | Linear encoders

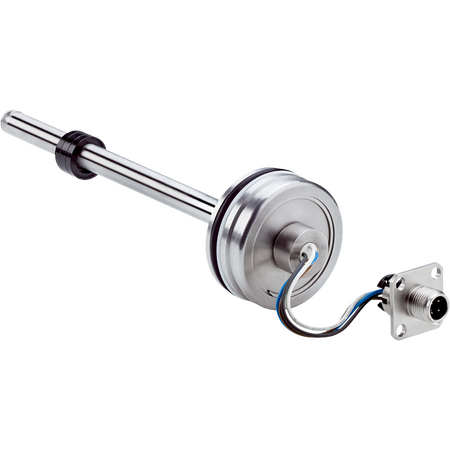

The SICK MAX48A-32JFDSE0420 linear encoder offers precise position measurement with a robust stainless steel housing, suitable for high-pressure hydraulic applications and industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-32JFDSE0420 | Linear encoders
Brand: SICK
SKU: 1114933
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, industrial linear transducer, SICK linear position encoder
Technical Specifications
- Installation housing diameter: 48 mm
- Measuring range: 0 mm to 420 mm
- Null zone: 30 mm
- Damping zone: 63 mm
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Operating pressure: 400 bar nominal, 480 bar max overload
- Supply voltage: 24 V DC (8 to 32 V DC)
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Measuring frequency: 1 ms internal
- Transmission rate: 20 ms cycle time
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50-500 mm range)
- Communication interface: SAE J1939 with 250 kbit/s baud rate
- Connector: Male M12 type L, 5-pin
- Enclosure rating: IP67 housing, IP69K connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), NBR O-ring
- Dimensions (H x L x W): 48mm x 150mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 420 mm with high accuracy
- Operating pressure up to 400 bar
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Fast measuring frequency of 1 ms and transmission cycle time of 20 ms
- Overvoltage and reverse polarity protection
- SAE J1939 communication interface with network management
