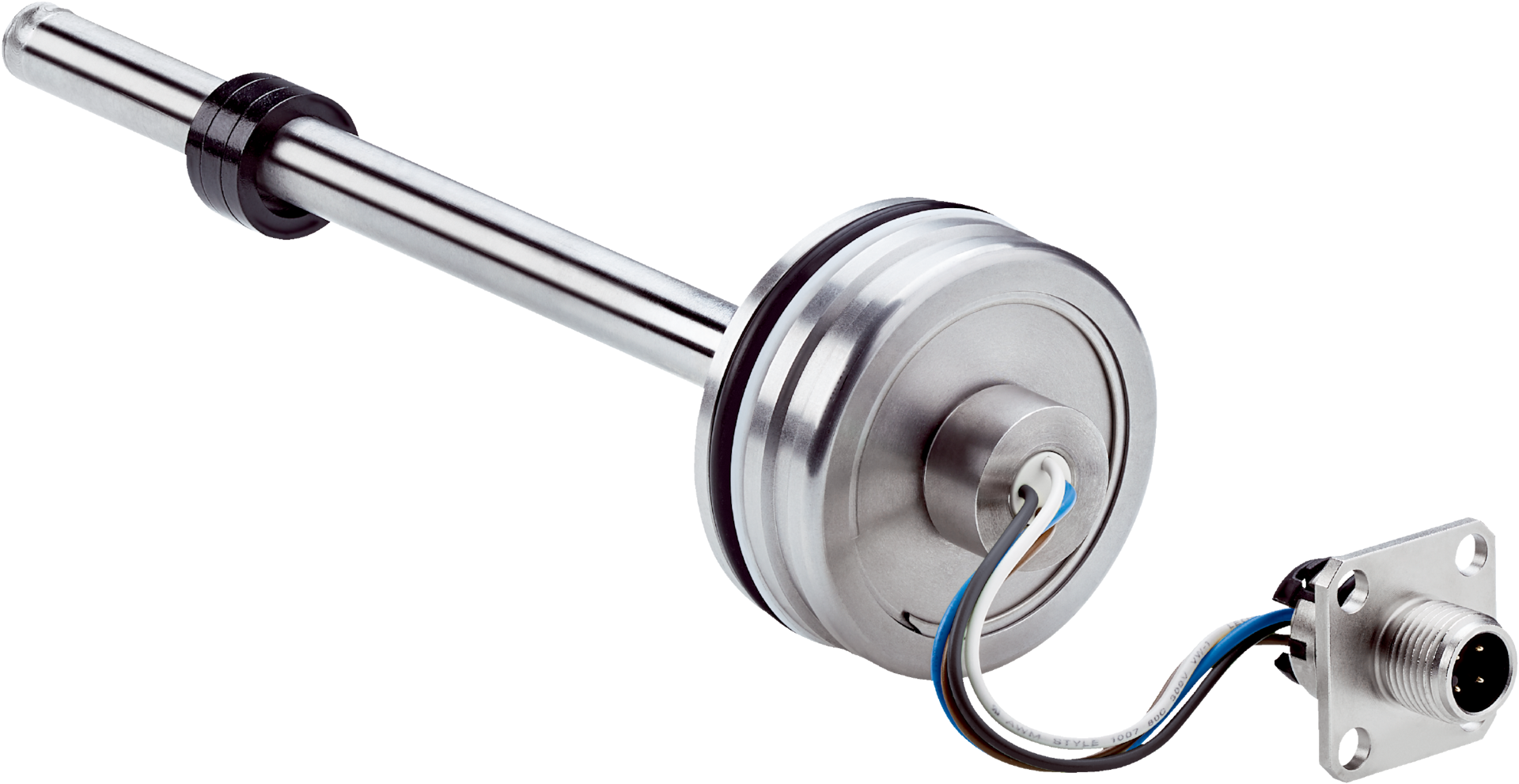

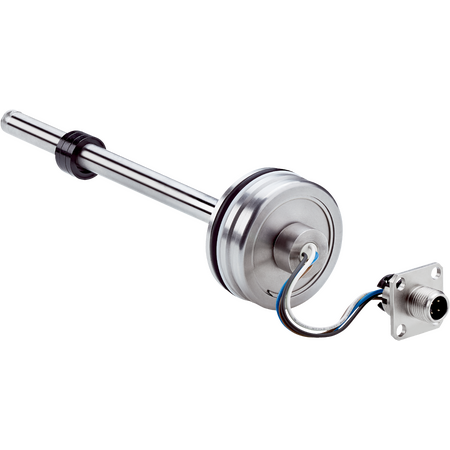

Product Name/Title: MAX48A-32V10HE0310 | Linear encoders
Brand: SICK
SKU: 1131878
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, industrial linear position sensor
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 310 mm
- Null zone: 30 mm
- Damping zone: 63 mm
- Operating temperature: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 400 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Accuracy: ±0.1 mm hysteresis, ±0.2 mm repeatability, ±0.25 mm linearity (50 to 500 mm range)
- Voltage output: 0.5 V DC to 4.5 V DC
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Load resistance: RL ≥ 10 kΩ
- Overvoltage protection: ≤ 36 V at all poles during power-up
- Reverse polarity protection: ≤ 36 V
- Insulation resistance: ≥ 10 MΩ
- Dielectric strength: 500 V DC to housing
- Short-circuit protection: VS – GND on housing
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- O-ring: NBR 70
- Support ring: PTFE
- Connector: M12 male, type L, 4-pin
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 48mm x 100mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 310 mm with null and damping zones
- High accuracy with ±0.1 mm hysteresis and ±0.2 mm repeatability
- Operating temperature range from -30 °C to +95 °C
- Pressure resistance up to 400 bar
- Analog voltage output from 0.5 V DC to 4.5 V DC
- Robust stainless steel housing and pressure pipe
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection
- Short switch-on time under 250 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor mounting and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool feedback systems
- Robotics and assembly line automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption of ≤ 0.75 W supports energy efficiency
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48A-32V10HE0310 linear encoder is available for immediate purchase. Ideal for industrial automation and hydraulic position sensing applications.
