MAX48A-32V20GC0400 | Linear encoders

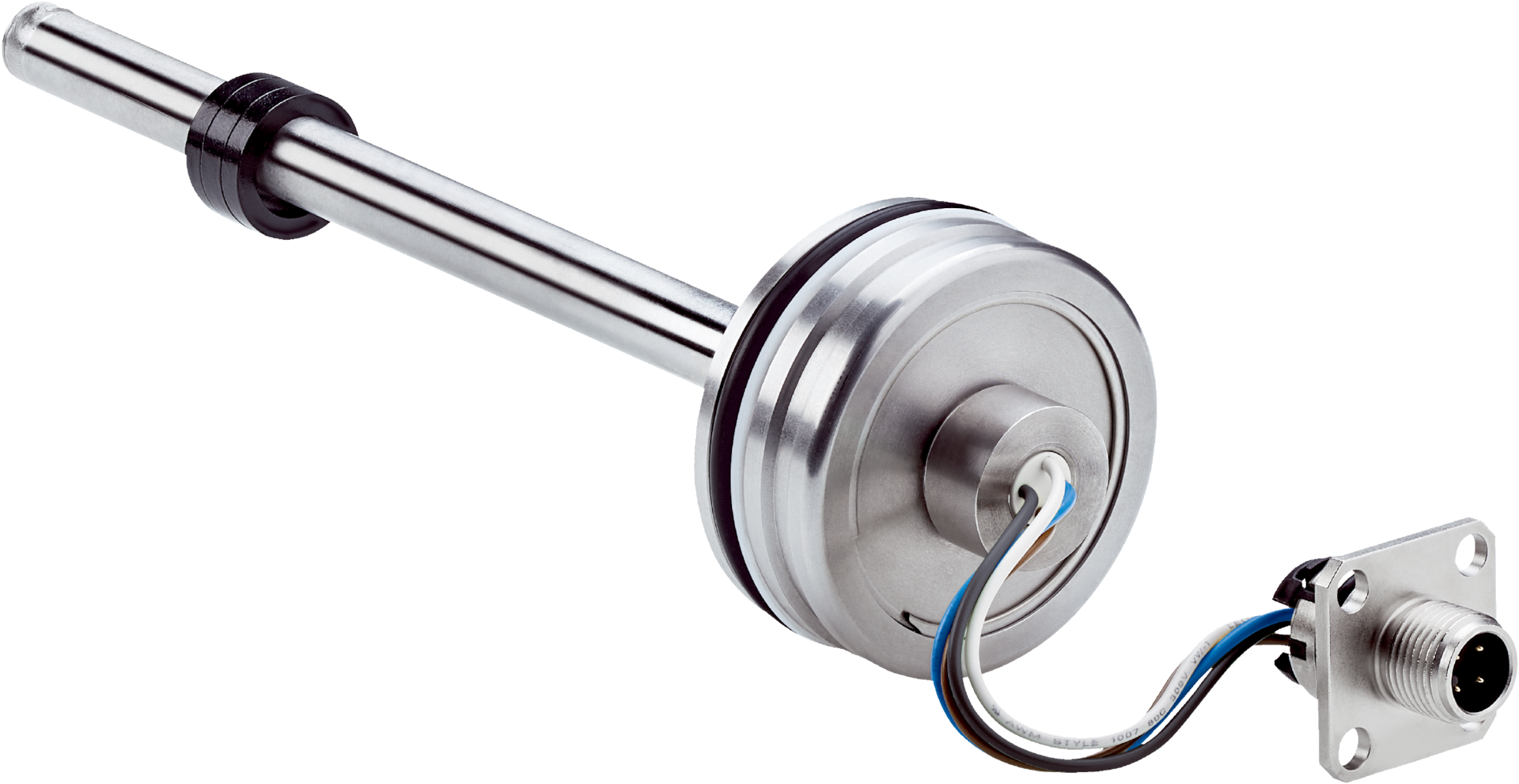

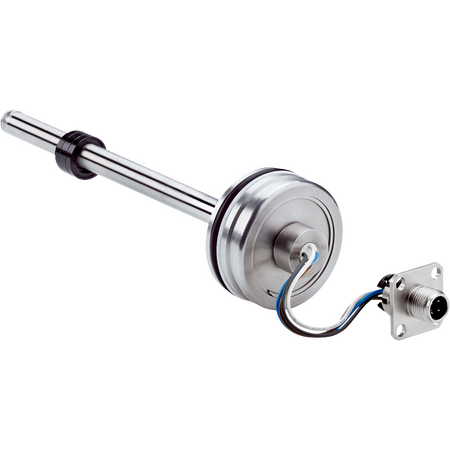

The SICK MAX48A-32V20GC0400 linear encoder offers precise position measurement with robust stainless steel construction, suitable for high-pressure hydraulic applications and industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48A-32V20GC0400 | Linear encoders
Brand: SICK
SKU: 1143129
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, position feedback sensor
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 400 mm
- Null zone: 30 mm
- Damping zone: 63 mm
- Operating pressure: 400 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms internal
- Accuracy: ±0.1 mm hysteresis, ±0.2 mm repeatability, ±0.25 mm linearity (50 to 500 mm range)
- Temperature drift: ≤ ±0.25 mm after 2 min warming up
- Communication interface: Analog voltage output 0.25 V DC to 4.75 V DC
- Electrical protection: Overvoltage, reverse polarity, short-circuit
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Connector: Male M12 type L, 4-pin
- Enclosure rating: IP67 housing, IP69K connector
- Dimensions (H x L x W): 48mm x 100mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 400 mm
- High accuracy with ±0.1 mm hysteresis and ±0.2 mm repeatability
- Operating pressure up to 400 bar
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Analog voltage output from 0.25 V DC to 4.75 V DC
- Overvoltage and reverse polarity protection
- Fast switch-on time under 250 ms
- Operating temperature range from -30 °C to +95 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery and agricultural equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High accuracy reduces energy waste in automated systems
- Robust design minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48A-32V20GC0400 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
