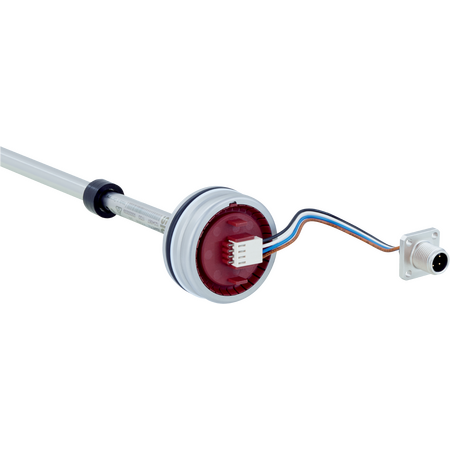

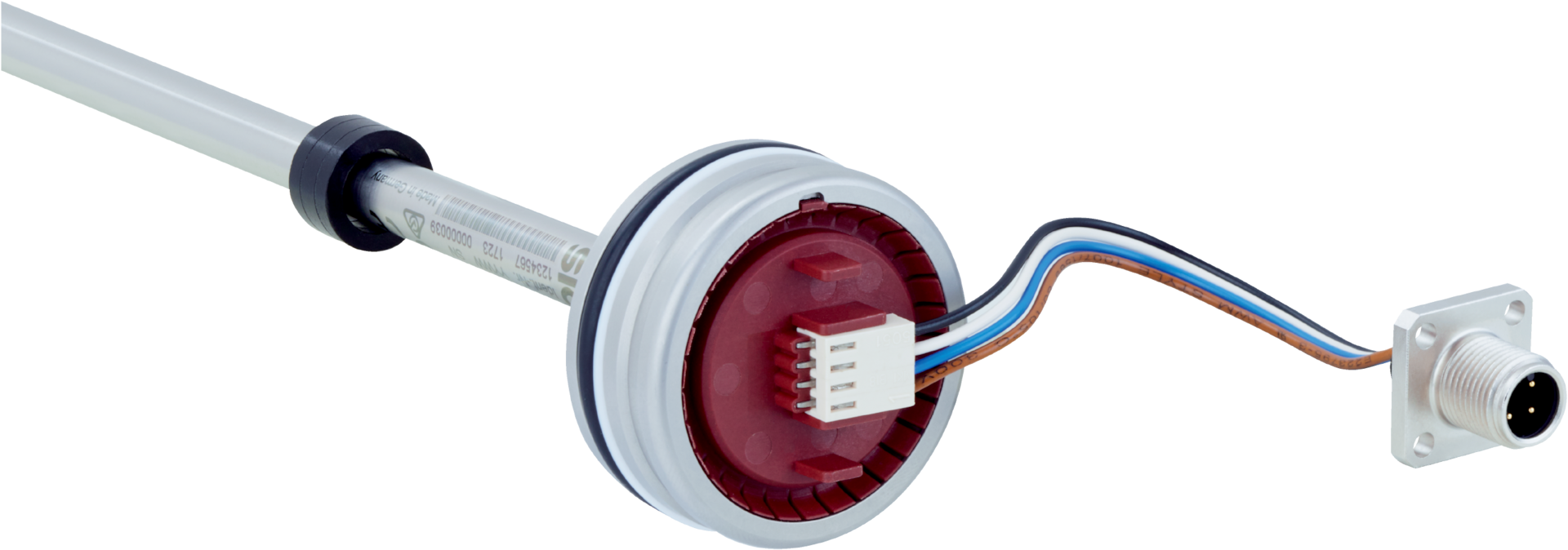

MAX48N-12A10AG0500 | Linear encoders
The SICK MAX48N-12A10AG0500 linear encoder features a robust 48 mm stainless steel housing with a measuring range of 0 to 500 mm, designed for high-pressure industrial applications with precise analog output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48N-12A10AG0500 | Linear encoders
Brand: SICK
SKU: 1219942
Alternatively Known As: Linear position sensor, linear displacement encoder, hydraulic cylinder position sensor, analog linear transducer
Technical Specifications
- Measuring range: 0 mm to 500 mm
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Output signal: Analog current 4 mA to 20 mA
- Operating pressure: 400 bar nominal, 480 bar overload
- Connection: Male M12 type S, 4-pin connector
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Protection rating: IP67 housing, IP69K connector
- Switch-on time: < 250 ms
- Vibration resistance: Up to 20 g sine and broadband noise
- Dimensions (H x L x W): 48mm x 120mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing suitable for IN cylinder mounting
- Measuring range from 0 mm to 500 mm with high accuracy
- Analog current output 4 mA to 20 mA
- Operating pressure up to 400 bar with overload pressure 480 bar
- Stainless steel housing and pressure pipe for durability
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Fast switch-on time less than 250 ms
- High vibration resistance up to 20 g sine and broadband noise
- Overvoltage and reverse polarity protection
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High accuracy reduces energy waste in industrial processes
- Robust design minimizes environmental impact from failures and downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-12A10AG0500 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
