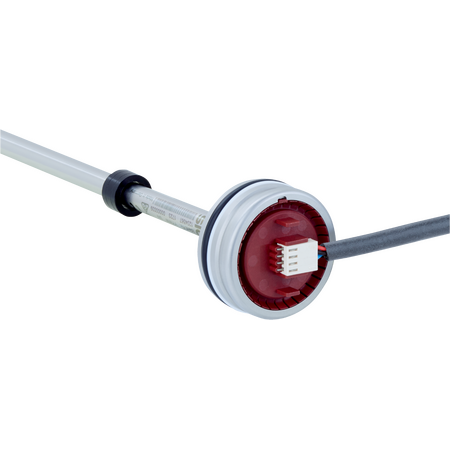

MAX48N-12A10K40300 | Linear encoders
The SICK MAX48N-12A10K40300 linear encoder offers precise position measurement with robust stainless steel housing, suitable for high-pressure hydraulic applications and industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48N-12A10K40300 | Linear encoders
Brand: SICK
SKU: 1219727
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, position feedback sensor
Technical Specifications
- Installation housing diameter: 48 mm
- Measuring range: 0 to 300 mm
- Null zone: 30 mm
- Damping zone: 30 mm
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog signal
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Operating pressure: 400 bar, Overload pressure 480 bar
- Operating temperature: -30 °C to +95 °C
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Protection rating: IP67 (EN 60529)
- Cable length: 1000 mm, 3-wire connection
- Dimensions (H x L x W): 48mm x 300mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range: 0 mm to 300 mm
- High accuracy with setpoint tolerance ≤ ±1 mm
- Operating pressure up to 400 bar
- Operating temperature range from -30 °C to +95 °C
- IP67 rated stainless steel housing for harsh environments
- Analog current output 4 mA to 20 mA
- Robust mechanical design with stainless steel and PTFE components
- Short switch-on time < 250 ms and high measuring frequency (2 ms)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hydraulic systems and electrical connections to ensure proper mounting and electrical safety.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption (≤ 1.25 W) supports energy-efficient operation
- High reliability reduces downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-12A10K40300 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
