MAX48N-12C7FCP0365 | Linear encoders

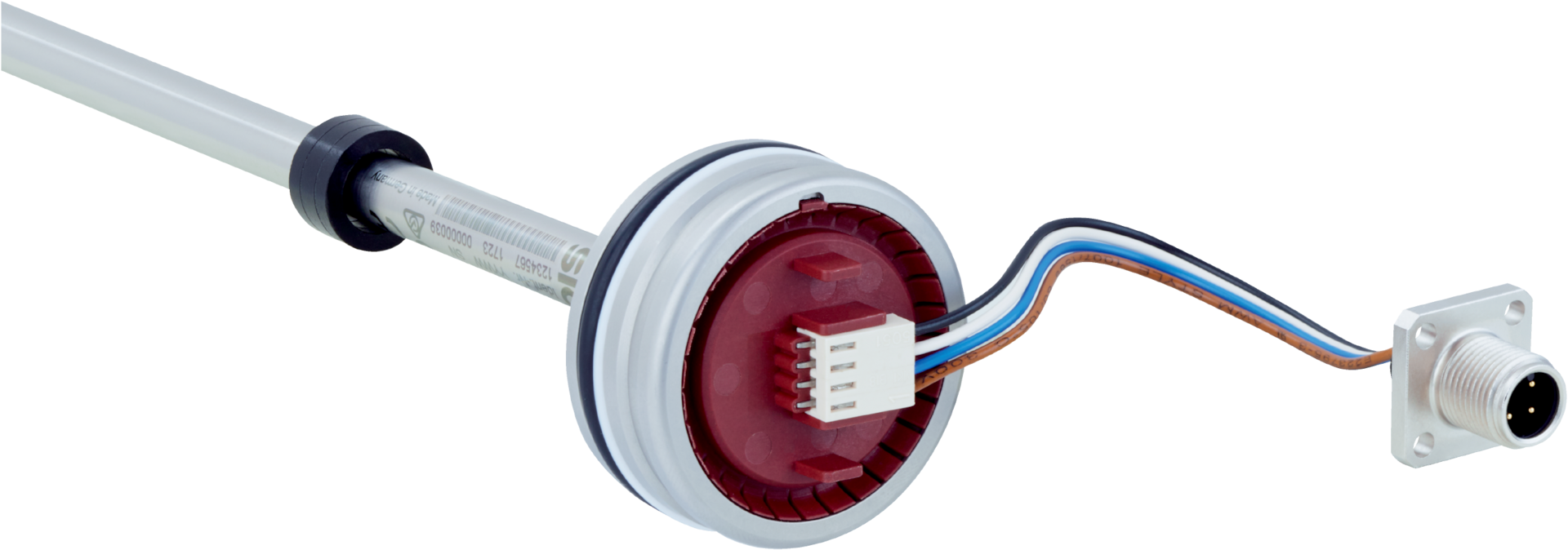

The SICK MAX48N-12C7FCP0365 linear encoder offers precise position and speed measurement with robust stainless steel construction, suitable for high-pressure industrial applications and CANopen communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

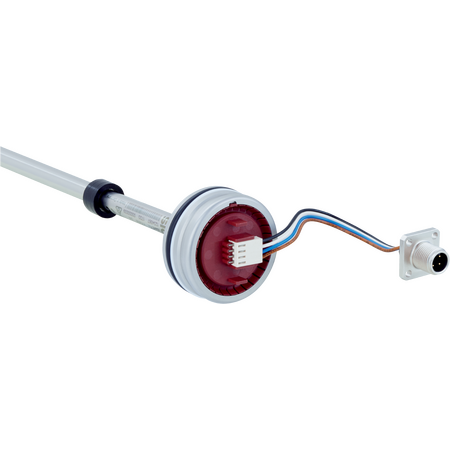

Product Name/Title: MAX48N-12C7FCP0365 | Linear encoders
Brand: SICK
SKU: 1110676
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder encoder, CANopen linear transducer
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 365 mm
- Speed measurement: 0 to 1,000 mm/s
- Null zone: 30 mm, Damping zone: 30 mm
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Operating pressure: 400 bar nominal, 480 bar overload, 600 bar test pressure
- Supply voltage: 24 V DC (8 to 32 V DC)
- Power consumption: ≤ 0.75 W, Current consumption: ≤ 30 mA
- Communication: CANopen CiA DS-301 and DS-406
- Connector: Male M12 type S, 5-pin
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Linearity: ±0.25 mm (50 to 500 mm range), ±0.04% F.S. (500 to 2,500 mm range)
- Protection: Overvoltage, reverse polarity, short-circuit
- Enclosure rating: IP67 housing, IP69K M12 connector
- Vibration resistance: Up to 20 g sine and broadband noise per IEC standards
- Dimensions (H x L x W): 48mm x 365mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 365 mm with position and speed output
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
- Operating pressure up to 400 bar with overload pressure 480 bar
- CANopen communication interface with configurable transmission rate
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection
- Fast switch-on time < 250 ms and low power consumption ≤ 0.75 W
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise positioning and speed measurement
- Hydraulic cylinder position feedback
- Machine tool and manufacturing equipment monitoring
- Mobile machinery requiring robust linear measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-12C7FCP0365 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
