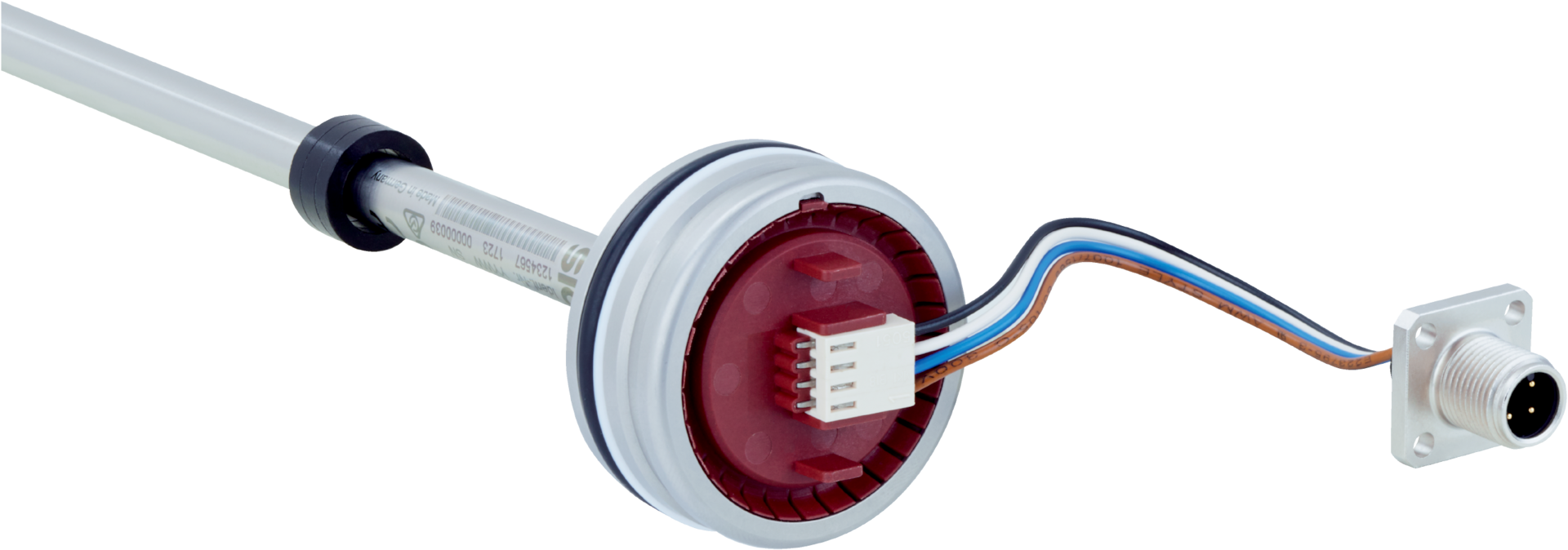

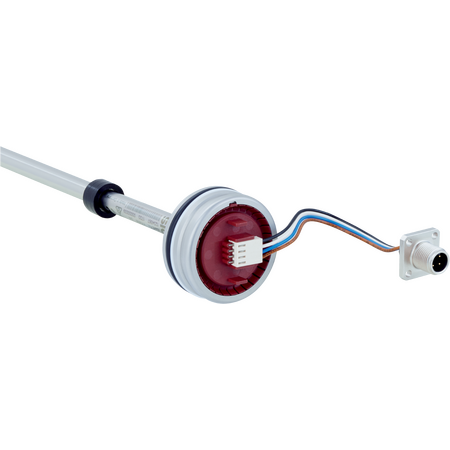

MAX48N-12C7FCP0420 | Linear encoders
The SICK MAX48N-12C7FCP0420 linear encoder offers precise position and speed measurement with a 420 mm range, robust stainless steel construction, and CANopen interface, ideal for industrial and mobile machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48N-12C7FCP0420 | Linear encoders
Brand: SICK
SKU: 1126091
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, CANopen linear transducer, industrial linear position sensor
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 420 mm
- Speed measurement: 0 to 1,000 mm/s
- Null zone: 30 mm, Damping zone: 30 mm
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms internal
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Linearity: ±0.25 mm (50 to 500 mm range)
- Temperature drift: ≤ ±0.25 mm after 2 min warming up
- Connection: Male M12 type S, 5-pin, radial direction
- Communication: CANopen CiA DS-301 and DS-406
- Operating pressure: 400 bar nominal, 480 bar overload
- Operating temperature: -30 °C to +95 °C
- Enclosure rating: IP67 housing, IP69K M12 connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), NBR O-ring
- Dimensions (H x L x W): 48mm x 420mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 420 mm with position and speed output
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- CANopen communication interface with configurable transmission rate
- Operating pressure up to 400 bar with overload pressure up to 480 bar
- Wide operating temperature range from -30 °C to +95 °C
- IP67 housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection
- Fast switch-on time < 250 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen devices and hydraulic system integration to ensure proper mounting and electrical connection.
Applications
- Industrial automation for precise position and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery and agricultural equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-12C7FCP0420 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
