MAX48N-22V20BM0205 | Linear encoders

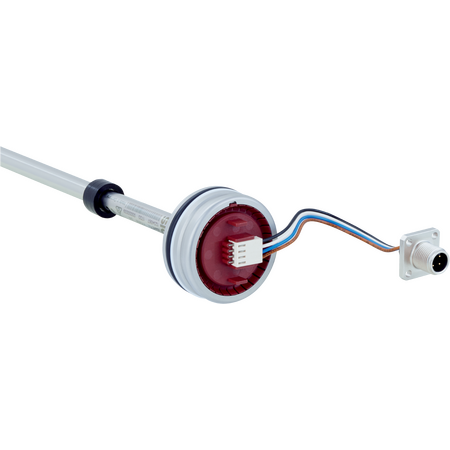

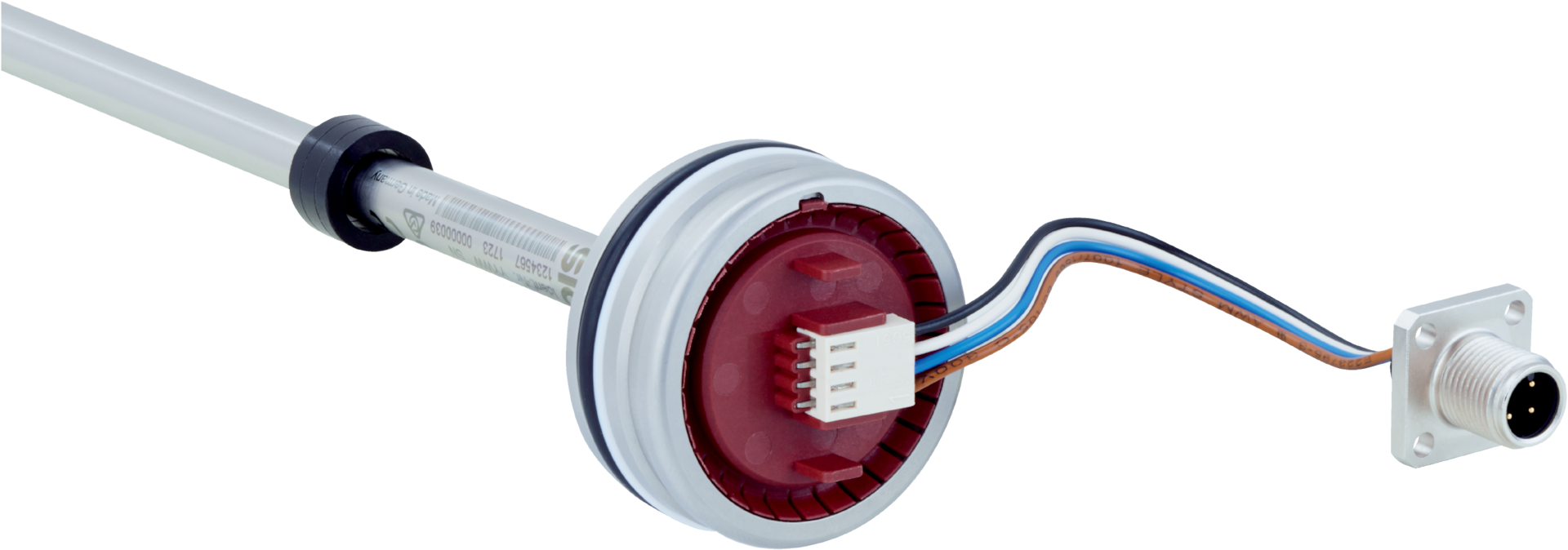

The SICK MAX48N-22V20BM0205 linear encoder features a 48 mm stainless steel housing with a 205 mm measuring range, providing precise position feedback for industrial automation and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48N-22V20BM0205 | Linear encoders
Brand: SICK
SKU: 1221056
Alternatively Known As: Linear position sensor, linear displacement encoder, hydraulic cylinder position sensor, analog linear transducer
Technical Specifications
- Dimensions (H x L x W): 48mm x 205mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range of 0 mm to 205 mm with null zone of 30 mm and damping zone of 36 mm
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability typically ±0.2 mm
- Operating temperature range from -30 °C to +95 °C
- Operating pressure up to 400 bar
- Analog voltage output from 0.25 V DC to 4.75 V DC
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage, reverse polarity, and short-circuit protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High reliability reduces maintenance and replacement frequency
- Low power consumption (≤ 0.75 W) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-22V20BM0205 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position measurement applications.
