MAX48N-31V11K11100 | Linear encoders

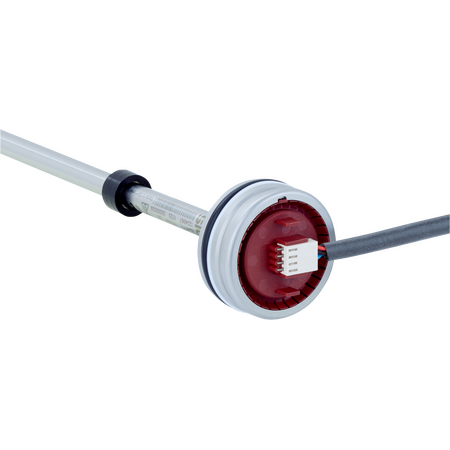

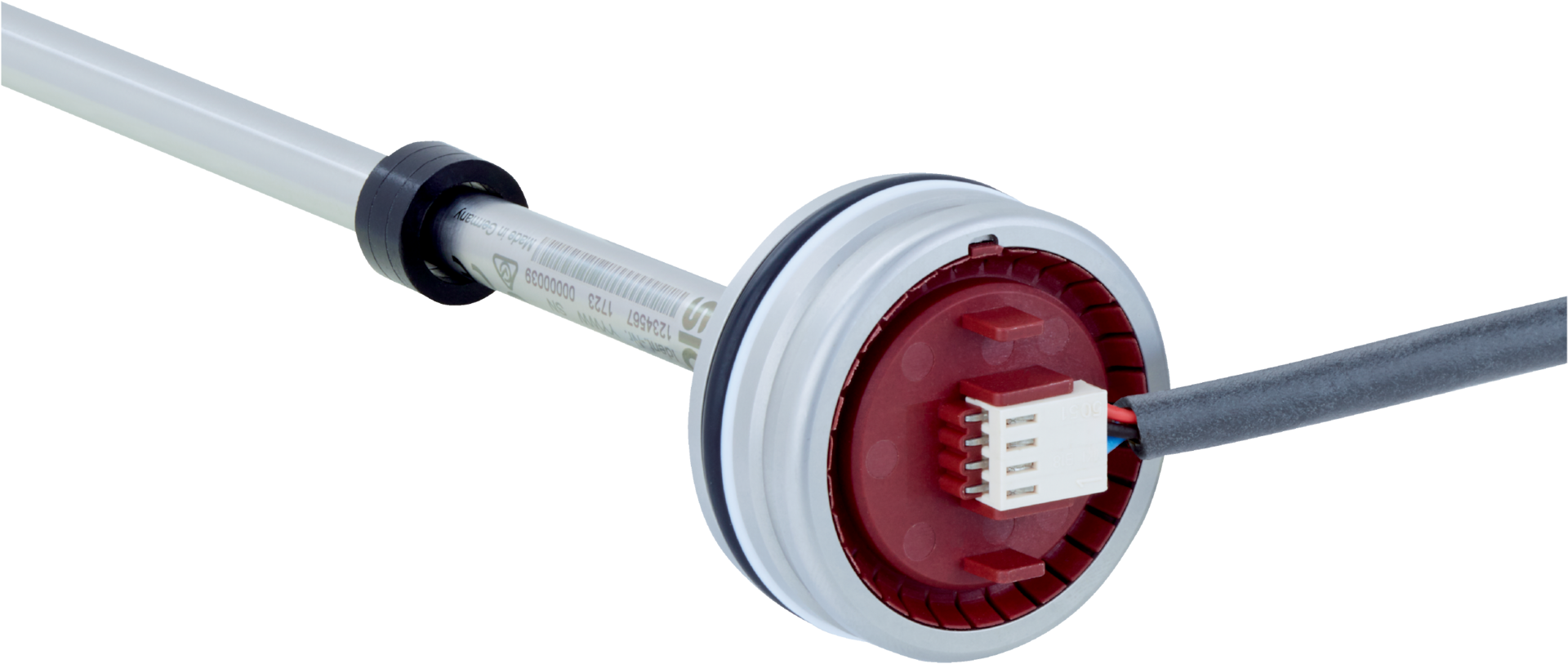

The SICK MAX48N-31V11K11100 linear encoder offers precise position measurement with robust stainless steel construction, suitable for high-pressure industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48N-31V11K11100 | Linear encoders
Brand: SICK
SKU: 1219506
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder encoder, Analog linear transducer
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 1100 mm
- Null zone: 30 mm
- Damping zone: 63 mm
- Operating temperature: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 400 bar
- Supply voltage: 12 V DC (8 to 16 V DC)
- Switch-on time: < 250 ms
- Switch-on current: Typical 2.5 A / 50 µs
- Measuring frequency: 2 ms
- Setpoint tolerance: ≤ ±1 mm
- Hysteresis: ±0.1 mm
- Repeatability: Typical ±0.2 mm
- Linearity: Typical ±0.25 mm (50 to 500 mm range), ±0.04% F.S. (500 to 2500 mm range)
- Temperature drift: Typical ≤ ±0.25 mm after 2 min warming up
- Communication interface: Analog voltage output (4.5 V DC to 0.5 V DC)
- Power consumption: ≤ 0.75 W
- Current consumption: ≤ 60 mA
- Load resistance: RL ≥ 10 kΩ
- Overvoltage protection: ≤ 18 V at all poles during power-up (60 s)
- Reverse polarity protection: ≤ 36 V (ISO 16750-2)
- Insulation resistance: Riso ≥ 10 MΩ (60 s)
- Dielectric strength: 500 V DC to housing (60 s)
- Short-circuit protection: VS – GND on housing
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- O-ring: NBR 70
- Support ring: PTFE
- Sheath: PUR
- Cable: 3-wire, 300 mm length, Ø 5.0 mm
- Dimensions (H x L x W): 48mm x 1100mm x 48mm
- Weight: 1.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 1100 mm with high accuracy
- Operating pressure up to 400 bar
- Stainless steel housing and pressure pipe for durability
- IP67 rated enclosure for protection against dust and water
- Analog voltage output interface
- High vibration resistance and EMC compliance
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct mounting, wiring, and calibration for optimal performance and safety.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption (≤ 0.75 W) supports energy efficiency
- High reliability reduces downtime and resource waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-31V11K11100 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
