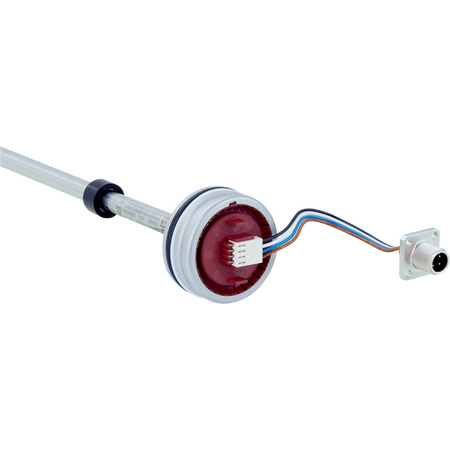

MAX48N-32A10MG0400 | Linear encoders
The SICK MAX48N-32A10MG0400 linear encoder features a 48 mm stainless steel housing with a 400 mm measuring range, designed for precise position measurement in industrial and mobile machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48N-32A10MG0400 | Linear encoders
Brand: SICK
SKU: 1223153
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder position sensor, Analog linear transducer
Technical Specifications
- Installation housing: 48 mm, IN cylinder mounting
- Measuring range: 0 mm to 400 mm
- Null zone: 30 mm
- Damping zone: 63 mm
- Operating fluid temperature: -30 °C to +95 °C
- Air humidity: 90% max, no condensation
- Operating pressure: 400 bar nominal, 480 bar overload
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Switch-on current: Typical 5.0 A / 50 µs
- Measuring frequency: 2 ms
- Output signal: Analog current 4 mA to 20 mA
- Electrical protection: Overvoltage, reverse polarity, short-circuit
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Connector: Male M12 type S, 4-pin
- Enclosure rating: IP67 housing, IP69K connector
- Dimensions (H x L x W): 48mm x 120mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing suitable for IN cylinder mounting
- Measuring range of 0 mm to 400 mm with 30 mm null zone and 63 mm damping zone
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability typically ±0.2 mm
- Operating temperature range from -30 °C to +95 °C for fluid temperature
- Pressure resistance up to 400 bar with overload pressure up to 480 bar
- Analog current output 4 mA to 20 mA
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage, reverse polarity, and short-circuit protection included
- Fast switch-on time less than 250 ms and measuring frequency of 2 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool feedback systems
- Mobile machinery and agricultural equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 1.25 W) supports energy-efficient operation
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-32A10MG0400 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
