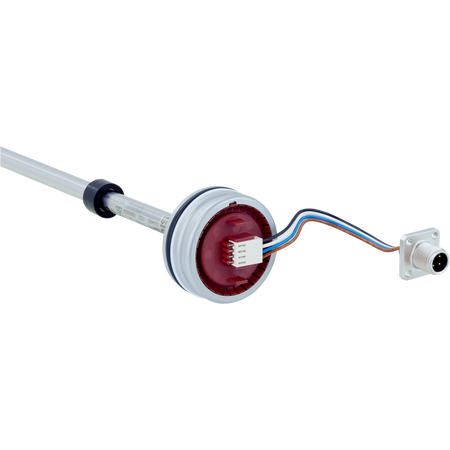

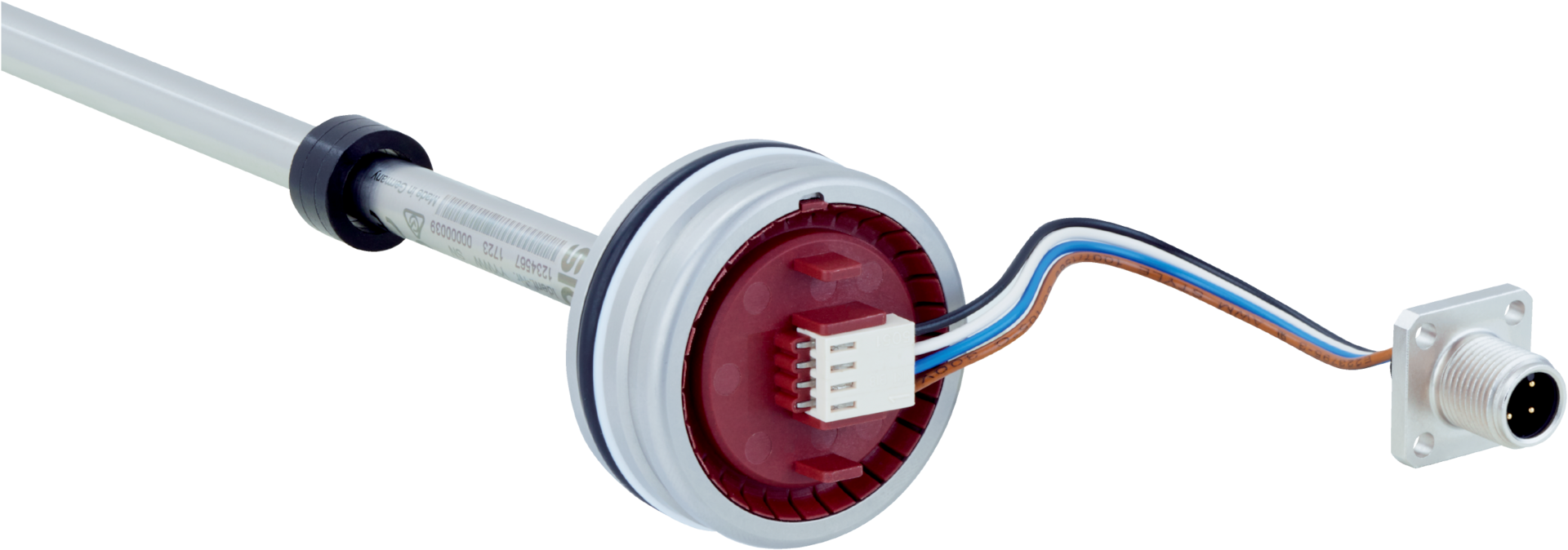

MAX48N-32A10MJ0900 | Linear encoders
The SICK MAX48N-32A10MJ0900 linear encoder offers precise position measurement with a 900 mm range, robust stainless steel construction, and high pressure resistance, ideal for industrial and mobile machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48N-32A10MJ0900 | Linear encoders
Brand: SICK
SKU: 1110539
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, position feedback sensor
Technical Specifications
- Measuring range: 0 mm to 900 mm
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Operating pressure: 400 bar, Overload pressure 480 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog signal
- Switch-on time: < 250 ms
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Protection rating: IP67 housing, IP69K M12 connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), PTFE support ring
- Dimensions (H x L x W): 48mm x 900mm x 48mm
- Weight: 1.2 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 900 mm with high accuracy
- Operating pressure up to 400 bar
- Stainless steel housing and pressure pipe for durability
- Analog current output 4 mA to 20 mA
- High vibration resistance and IP67/IP69K rated for harsh environments
- Overvoltage and reverse polarity protection
- Fast switch-on time under 250 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting, electrical connection, and calibration for optimal performance and safety.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery and agricultural equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High accuracy reduces energy waste in machinery operation
- Compliant with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-32A10MJ0900 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
