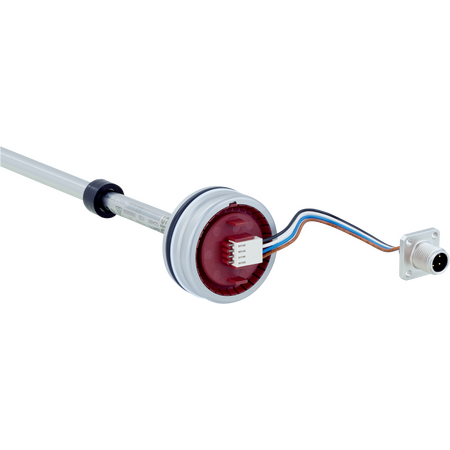

MAX48N-32V20AC0350 | Linear encoders
The SICK MAX48N-32V20AC0350 linear encoder offers precise position measurement with a 350 mm range, robust stainless steel housing, and high environmental protection ratings, ideal for industrial and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX48N-32V20AC0350 | Linear encoders
Brand: SICK
SKU: 1219921
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder encoder, Analog linear transducer
Technical Specifications
- Dimensions (H x L x W): 48mm x 350mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 350 mm with 30 mm null zone and 63 mm damping zone
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
- Operating temperature range from -30 °C to +95 °C
- Operating pressure up to 400 bar
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Analog voltage output from 0.25 V DC to 4.75 V DC
- Overvoltage, reverse polarity, and short-circuit protection
- Fast switch-on time < 250 ms and measuring frequency 2 ms
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting, electrical connection, and calibration.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool feedback systems
- Mobile machinery and heavy equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High reliability reduces maintenance and replacement frequency
- Low power consumption (≤ 0.75 W) minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-32V20AC0350 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
