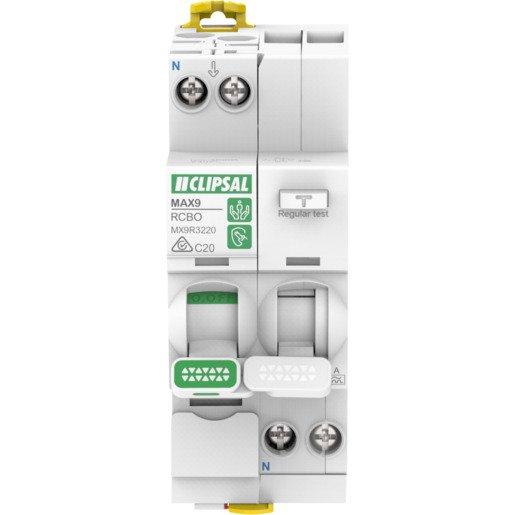

MAX9 RCBO 1PN C 20A 30mA | Combined RCD & MCB | Visual Trip Indicator | by Clipsal
The MAX9 RCBO 1PN C 20A 30mA is a combined Residual Current Device and Miniature Circuit Breaker, designed for residential and commercial electrical distribution. With a 20A current rating and 30mA earth leakage sensitivity, it ensures optimal protection against overloads and short circuits. Its compact design and visual trip indicator make installation and fault identification easy, making it a reliable choice for modern switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX9 RCBO 1PN C 20A 30mA | Combined RCD & MCB | Visual Trip Indicator | by Clipsal
Brand: Clipsal
SKU: CLIMX9R3220
Alternatively Known As: MAX9 RCBO, Clipsal RCBO 20A, Residual Current Breaker with Overcurrent, CLIMX9R3220, 20A RCBO, Clipsal MAX9 1PN RCBO
Technical Specifications
- Rated current: 20A
- Poles: 1P+N (Single pole with neutral)
- Tripping curve: C
- Residual current sensitivity: 30mA (Type A)
- Rated voltage: 230/240V AC
- Breaking capacity: 6kA
- Mounting: DIN rail, 2 modules
- Visual trip indicator
- IP20 (when installed in enclosure)
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.15 kg
Key Features
- Combined Residual Current Device (RCD) and Miniature Circuit Breaker (MCB) in one unit
- 20A current rating with C curve tripping characteristic
- 30mA earth leakage sensitivity (Type A)
- Single pole with neutral (1PN)
- 2 module width for easy installation
- Visual trip indicator for quick fault identification
- Compact design for modern switchboards
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Residential and commercial electrical distribution boards
- Protection of final sub-circuits against overload, short circuit, and earth leakage
- Suitable for lighting and power circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MAX9 RCBO 1PN C 20A 30mA A 2MOD VD (CLIMX9R3220) is available for immediate purchase. Ideal for residential and commercial switchboard protection applications.
