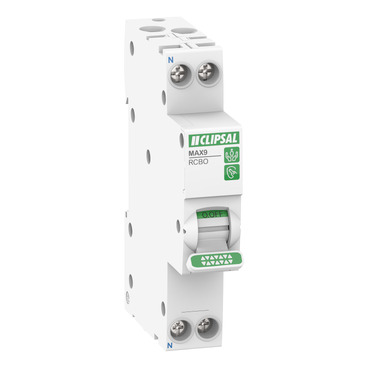

MAX9 RCBO 1PN C 25A 10mA A SLIM | Type A | 6kA Short-Circuit Capacity | Slim Design | @Pack of 1 | by Clipsal
The MAX9 RCBO 1PN C 25A 10mA A SLIM is a compact residual current breaker designed for enhanced electrical safety in residential and commercial switchboards. With a 10mA sensitivity and 6kA short-circuit capacity, it effectively protects against electrical faults. Its slim design allows for space-saving installation on DIN rails, making it ideal for various applications, including light industrial electrical panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX9 RCBO 1PN C 25A 10mA A SLIM | Type A | 6kA Short-Circuit Capacity | Slim Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: CLIMX9R1125
Alternatively Known As: Clipsal MAX9 RCBO, 25A RCBO, Slim RCBO, Residual Current Breaker with Overcurrent Protection, CLIMX9R1125, Clipsal 10mA RCBO, Clipsal 1PN RCBO
Technical Specifications
- Rated current: 25A
- Poles: 1P+N (single phase + neutral)
- Residual current sensitivity: 10mA
- Tripping curve: C
- Short-circuit capacity: 6kA
- Type: A (detects AC and pulsating DC faults)
- Mounting: DIN rail
- Voltage: 230V AC
- Frequency: 50Hz
- Terminal capacity: 1-16mm²
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.12 kg
Key Features
- Combined residual current device and miniature circuit breaker (RCBO)
- 1 pole + neutral (1PN) configuration
- 25A rated current
- 10mA residual current sensitivity for enhanced personal protection
- C curve tripping characteristic for general purpose circuits
- 6kA short-circuit breaking capacity
- Type A for AC and pulsating DC fault currents
- Slim design for space-saving installation
- Quick and easy DIN rail mounting
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential switchboards
- Commercial switchboards
- Light industrial electrical panels
- Protection of final sub-circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
Environmental Benefits
- Enhanced electrical safety reduces risk of fire and electric shock
- Slim design minimizes material usage and waste
- Long operational life reduces replacement frequency
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal MAX9 RCBO 1PN C 25A 10mA A SLIM (CLIMX9R1125) is available for immediate purchase. Ideal for residential and commercial switchboards requiring compact, high-safety circuit protection.
