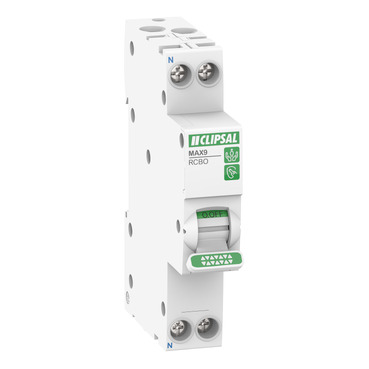

MAX9 RCBO 1PN C 32A 10mA A SLIM | Combined RCD & MCB | Slimline Design | @Pack of 1 | by Clipsal
The MAX9 RCBO 1PN C 32A 10mA A SLIM is a combined residual current device and miniature circuit breaker, perfect for residential and commercial switchboards. With a sensitivity of 10mA Type A for electric shock protection and a slimline design for space-saving installation, it ensures safety and efficiency in electrical distribution. Quick DIN rail mounting makes it easy to install, making it ideal for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX9 RCBO 1PN C 32A 10mA A SLIM | Combined RCD & MCB | Slimline Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: CLIMX9R1132
Alternatively Known As: Clipsal MAX9 RCBO, 32A RCBO, Slimline RCBO, Residual Current Breaker with Overcurrent, CLIMX9R1132
Technical Specifications
- Rated current: 32A
- Poles: 1P+N (Single pole with neutral)
- Tripping curve: C
- Residual current sensitivity: 10mA Type A
- Rated voltage: 230/240V AC 50Hz
- Breaking capacity: 6kA
- Mounting: DIN rail
- Slimline width: 18mm
- IP20 (when installed in enclosure)
- Operating temperature: -25°C to +40°C
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.12 kg
Key Features
- Combined residual current device (RCD) and miniature circuit breaker (MCB) in one unit
- Rated current: 32A
- Sensitivity: 10mA Type A (protection against electric shock)
- Single pole with neutral (1PN)
- C curve for general purpose circuit protection
- Slimline design for space-saving installation
- Quick and easy DIN rail mounting
- Clear ON/OFF indication
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential switchboards
- Commercial switchboards
- Light industrial electrical distribution
- Protection of final sub-circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
Environmental Benefits
- Enhanced electrical safety reduces risk of fire and electric shock.
- Compact design minimizes material usage and waste.
- Energy-efficient operation with minimal standby power consumption.
Warranty Information
12 months manufacturer's warranty.
Available Now
The Clipsal MAX9 RCBO 1PN C 32A 10mA A SLIM (CLIMX9R1132) is available for immediate purchase. Ideal for residential, commercial, and light industrial switchboard applications requiring advanced circuit and residual current protection.
