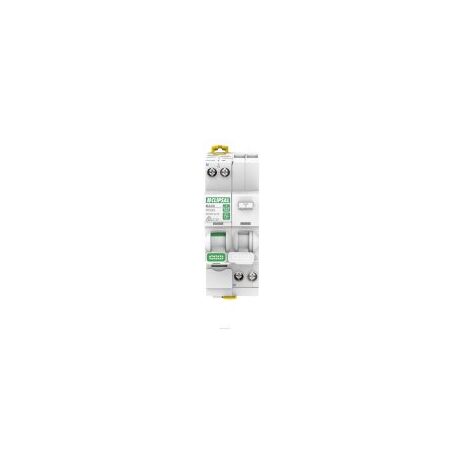

MAX9 RCBO 1PN C 32A 30mA | C Curve Tripping | 6kA Short Circuit Capacity | Visual Trip Indicator | @1 | by Clipsal
The MAX9 RCBO 1PN C 32A 30mA is designed for reliable protection in residential and commercial switchboards. With a C curve tripping characteristic and 6kA short circuit capacity, it ensures safety against earth leakage and overload. Ideal for licensed electricians, this compact 2-module device features a visual trip indicator for easy fault identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX9 RCBO 1PN C 32A 30mA | C Curve Tripping | 6kA Short Circuit Capacity | Visual Trip Indicator | @1 | by Clipsal
Brand: Clipsal
SKU: CLIMX9R3232
Alternatively Known As: Clipsal MAX9 RCBO, RCBO 32A 30mA, Residual Current Breaker with Overcurrent, CLIMX9R3232, MAX9 1PN RCBO, 2 Module RCBO
Technical Specifications
- Rated current: 32A
- Poles: 1 Pole + Neutral (1PN)
- Tripping curve: C
- Earth leakage sensitivity: 30mA (Type A)
- Short circuit capacity: 6kA
- Voltage: 230V AC
- Frequency: 50Hz
- Mounting: DIN rail
- Width: 2 modules
- Visual trip indicator
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.2 kg
Key Features
- Combines residual current device (RCD) and miniature circuit breaker (MCB) in one unit
- 1 Pole + Neutral (1PN) configuration
- C Curve tripping characteristic for general purpose protection
- 32A rated current
- 30mA earth leakage sensitivity (Type A)
- 6kA short circuit breaking capacity
- 2 module width for compact installation
- Visual trip indicator for easy fault identification
- Suitable for use with MAX9 distribution boards
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential electrical distribution boards
- Commercial switchboards
- Light industrial installations
- Protection of final sub-circuits against earth leakage and overload
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
Environmental Benefits
- Improves electrical safety, reducing risk of fire and electric shock
- Long service life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MAX9 RCBO 1PN C 32A 30mA Type A 2MOD VD (CLIMX9R3232) is available for immediate purchase. Ideal for residential and commercial switchboard protection.
